Buy Oakton 35419-50, Environmental Express 1500 PC Benchtop Meter Kit

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Measurement Parameters:: Measurement Parameters: pH, ORP / mV, Conductivity, TDS, Salinity, Resistivity
Probe Included:: Probe Included: Yes

35419-50 Includes Only:

PC Benchtop Meter
Electrode Stand
Probe

Features:

Large monochrome LCD
Integrated electrode holder (up to 2 electrodes) that can be attached to either side of the meter
Simple user interface and single parameter display
1000 Memory data points
Automatic Temperature Compensation (ATC) with temperature calibration
Adjustable auto shut-off time (1 to 30 minutes)
Auto stable, auto hold, and real-time measurement modes with reading stability indicators
PC (standard USB) / printer (25 pin serial) connection via 2.5 mm diameter phono jack

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Reviews

Meter Type

Benchtop

Display Type

Static segment LCD with 160 segments

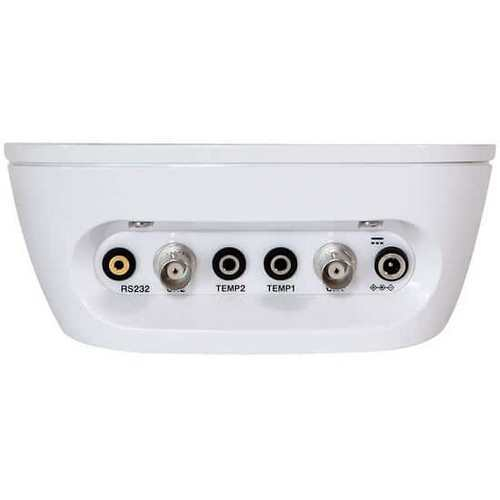

Connections

BNC, phono (ATC) , DC sockets

Min pH (pH)

-2

Max pH (pH)

pH Resolution

0.01 pH

pH Accuracy

± 0.01 pH

Buffer Recognition

Yes

Calibration

Yes

Min mV (mV)

-2000

Max mV (mV)

2000

mV Resolution

0.1 mV (<±1000 mV)
1 mV (≥ ±1000 mV)

mV Accuracy

±0.3 mV (<±1000 mV)
0.3% of reading (≥ ±1000 mV)

Max Conductivity

0.00 - 20.00 µS
20.1 - 200.0 µS
201- 2000 µS
2.01 - 20.00 mS
20.1 - 200.0 mS

Conductivity Resolution

0.01 / 0.1

Conductivity Accuracy

±0.6% full scale
±1.5% full scale > 18.0 mS/cm

Max TDS

0 - 10.00 ppm
10.1 - 100.0 ppm
101 - 1000 ppm
1.01 - 10.00 ppt
10.1 - 100 ppt

TDS Resolution

0.01 / 0.1 / 1 ppm
0.01 / 0.1 ppt

TDS Accuracy

±0.1% full scale

Min Salinity

0.0 ppt / 0.00%

Max Salinity

100.0 ppt / 10.00 %

Salinity Resolution

0.1 ppt / 0.01%

Salinity Accuracy

±0.2% full scale

Min Resistivity

0.000 Ω/cm

Max Resistivity

20.0 MΩ/cm

Resistivity Resolution

0.5% full scale

Resistivity Accuracy

±0.6% full scale
±1.5% full scale > 1.80 MΩcm

Min Temperature (° C)

-30

Max Temperature (° C)

130

Min Temperature (° F)

-22

Max Temperature (° F)

266

Temperature Resolution

0.1 °C / °F

Temperature Accuracy

± 0.5 °C / ± 0.9 °F

Temperature Compensation

Yes

Output

Phono jack (to USB / RS-232)

Data Logging (points)

1000 data points

Memory Size

1000 data points

Power (VAC)

100 to 240

Power (Hz)

50/60

Number of Positions

Probe Included

Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Meter Type

Benchtop

Display Type

Static segment LCD with 160 segments

Connections

BNC, phono (ATC) , DC sockets

Min pH (pH)

-2

Max pH (pH)

pH Resolution

0.01 pH

pH Accuracy

± 0.01 pH

Buffer Recognition

Yes

Calibration

Yes

Min mV (mV)

-2000

Max mV (mV)

2000

mV Resolution

0.1 mV (<±1000 mV)
1 mV (≥ ±1000 mV)

mV Accuracy

±0.3 mV (<±1000 mV)
0.3% of reading (≥ ±1000 mV)

Max Conductivity

0.00 - 20.00 µS
20.1 - 200.0 µS
201- 2000 µS
2.01 - 20.00 mS
20.1 - 200.0 mS

Conductivity Resolution

0.01 / 0.1

Conductivity Accuracy

±0.6% full scale
±1.5% full scale > 18.0 mS/cm

Max TDS

0 - 10.00 ppm
10.1 - 100.0 ppm
101 - 1000 ppm
1.01 - 10.00 ppt
10.1 - 100 ppt

TDS Resolution

0.01 / 0.1 / 1 ppm
0.01 / 0.1 ppt

TDS Accuracy

±0.1% full scale

Min Salinity

0.0 ppt / 0.00%

Max Salinity

100.0 ppt / 10.00 %

Salinity Resolution

0.1 ppt / 0.01%

Salinity Accuracy

±0.2% full scale

Min Resistivity

0.000 Ω/cm

Max Resistivity

20.0 MΩ/cm

Resistivity Resolution

0.5% full scale

Resistivity Accuracy

±0.6% full scale
±1.5% full scale > 1.80 MΩcm

Min Temperature (° C)

-30

Max Temperature (° C)

130

Min Temperature (° F)

-22

Max Temperature (° F)

266

Temperature Resolution

0.1 °C / °F

Temperature Accuracy

± 0.5 °C / ± 0.9 °F

Temperature Compensation

Yes

Output

Phono jack (to USB / RS-232)

Data Logging (points)

1000 data points

Memory Size

1000 data points

Power (VAC)

100 to 240

Power (Hz)

50/60

Number of Positions

Probe Included

Yes
