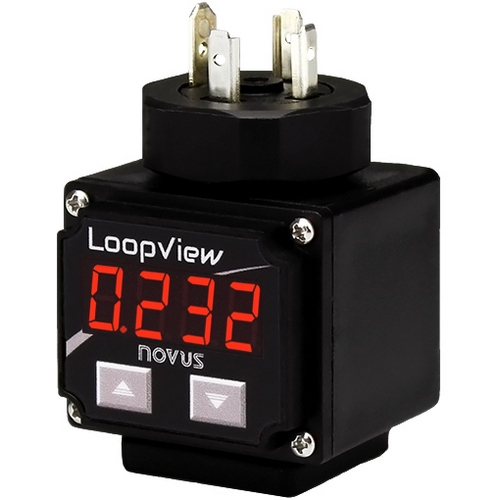

It is a two-wire 4-20 mA loop indicator, low power loop-powered indicator. Its excellent precision allows to indicate several measurements like pressure, differential pressure, flow, pH, temperature, acceleration and other. It has valve type connector standard EN 175301-803 (old DIN 43650 form A) male and female.
It is powered by the current loop itself and allows to be inserted into sensors already installed in industrial facilities, with same connector type.
This device has a 4-digit display and 2 keys, which allows quick and easy adjustment in indication value and range, decimal point position, applying digital signal filter and user calibration.
The parameters modification is password protected and can be done directly in the loop indicator, through panel keys. The configured parameters are stored in non-volatile memory, that means keeps it saved on loop break occurrence.
