Buy NOVUS 8806060720, TxMini-485 Temperature Transmitter w/o M12 Connector

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Model:: Model: TxMini-485

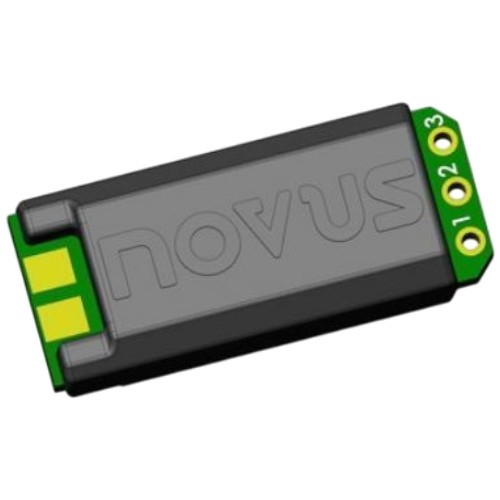

NOVUS, 8806060720, TxMini-485 Temperature Transmitter for Pt100, without M12 Connector, RS485 Communication

Features:

TxMini-485 is a compact temperature transmitter for internal assembly on the output of Pt100 resistance temperature sensors.
It is composed of an encapsulated electronic circuit.
When using Modbus RTU commands, their configuration can be performed via RS485 interface.
The SigNow software and app allows you to configure the transmitter, as well as perform diagnostics.
It is also possible to use another supervisory software to configure and read the information provided by the transmitter.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Sensor input

Pt100 RTD: Type 3-wire, 0.8 mA excitation, α = 0.00384, according to NBR 13773. IEC 60751 (ITS90).

Typical accuracy: 0.1 %.
Minimum accuracy: 0.2 %.
Measurement range: -200 to 600 °C (-328 to 1112 °F).
Minimum measurement range: 40 °C (104 °F).

Effect of sensor cable resistance

0.005 °C / Ω

Maximum permissible resistance of the sensor cable

25 Ω

Time between energizing and stabilizing the measurement

< 2.5 s

Temperature influence

< ± 0.2 % / 25 °C (77 °C).

Response time

Typically, 2 s.

Maximum acceptable voltage at the input terminals on the sensor

Power supply

7 to 40 Vdc, consumption < 10 mA

Operating temperature

-40 to 85 °C (-40 to 185 °F)

Housing

Polyamide

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Sensor input

Pt100 RTD: Type 3-wire, 0.8 mA excitation, α = 0.00384, according to NBR 13773. IEC 60751 (ITS90).

Typical accuracy: 0.1 %.
Minimum accuracy: 0.2 %.
Measurement range: -200 to 600 °C (-328 to 1112 °F).
Minimum measurement range: 40 °C (104 °F).

Effect of sensor cable resistance

0.005 °C / Ω

Maximum permissible resistance of the sensor cable

25 Ω

Time between energizing and stabilizing the measurement

< 2.5 s

Temperature influence

< ± 0.2 % / 25 °C (77 °C).

Response time

Typically, 2 s.

Maximum acceptable voltage at the input terminals on the sensor

Power supply

7 to 40 Vdc, consumption < 10 mA

Operating temperature

-40 to 85 °C (-40 to 185 °F)

Housing

Polyamide
