Model:: Model: TxMini-M12-MP

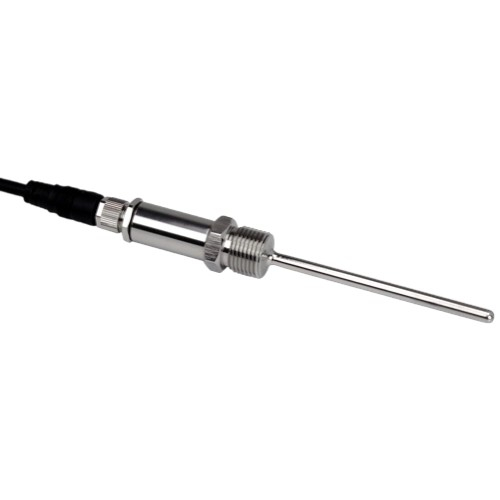

NOVUS, 8806060609, TxMini-M12-MP Temperature Transmitter with Pt100 Stainless Probe, 6x50mm, 1/4 BSP, Female M12, Cable 1m, 4-20 mA Output

Features:

TxMini-M12-MP Transmitter is a two-wire 4-20 mA type temperature transmitter powered by the current loop.
You can use the SigNow software or app to configure it. To do this, simply connect the TxConfig-M12 Configuration Interface to the computer or smartphone you are using.
To configure it, the transmitter does not need to be powered.
The output current is linearized according to the signal applied to the transmitter input and adjusted according to the configured scale.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Sensor input

Pt100: 3-wire type, 0.8 mA excitation, α = 0.00384, according to NBR 13773. IEC 60751 (ITS-90).

Time between energizing and stabilizing the measurement

< 2.5 s, Accuracy is only after 15 minutes

Reference conditions

Environment: 25 °C (77 °F).
Power supply: 24 V.
Load: 250 Ω.
Stabilization time: 15 minutes

Temperature influence

< ± 0.2 % / 25 °C (77 °C).

Response time

Typically, 1.6 s.

Maximum acceptable voltage at the input terminals on the sensor

RTD Current

800 µA

Output

4-20 mA or 20-4 mA current, 2-wire type

Output resolution

2 µA

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Sensor input

Pt100: 3-wire type, 0.8 mA excitation, α = 0.00384, according to NBR 13773. IEC 60751 (ITS-90).

Time between energizing and stabilizing the measurement

< 2.5 s, Accuracy is only after 15 minutes

Reference conditions

Environment: 25 °C (77 °F).
Power supply: 24 V.
Load: 250 Ω.
Stabilization time: 15 minutes

Temperature influence

< ± 0.2 % / 25 °C (77 °C).

Response time

Typically, 1.6 s.

Maximum acceptable voltage at the input terminals on the sensor

RTD Current

800 µA

Output

4-20 mA or 20-4 mA current, 2-wire type

Output resolution

2 µA
