NOVUS, 8801825040, WL420-25M-L40 Submersible Hydrostatic Level Transmitter, 25 mH2O, 40 m Cable, 4-20 mA Output
Applications:
- Wastewater Tank
- Groundwater Reservoir
- Connected Level Information
Features:
- PUR Vented Cable
- IP68 Rated
- Rugged Stainless Steel Construction
- High Accuracy (0,5 % F.S.)

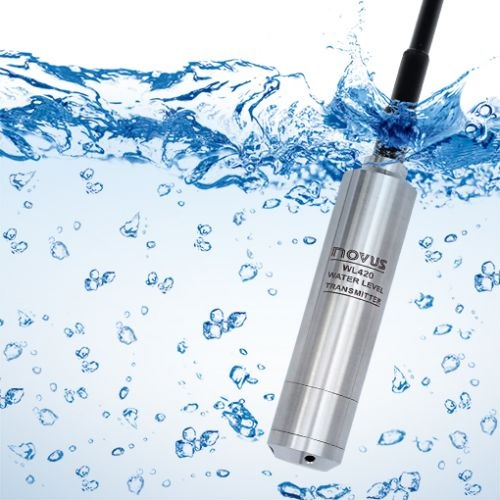

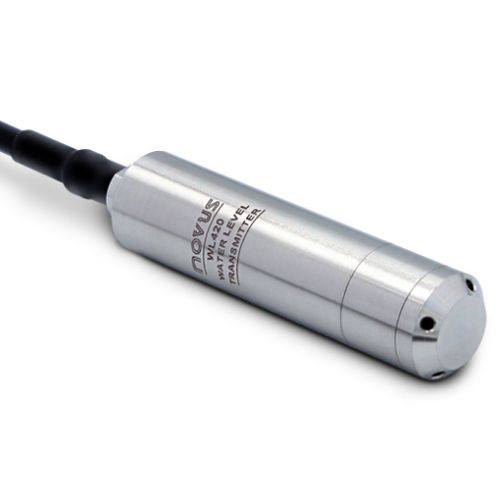

WL420 has been designed for continuous liquid level monitoring in water wells, reservoirs, tanks, boreholes, rivers and other liquids.
The submersible unit measures the static pressure of the liquid column above the transmitter and transmits a current signal proportional to the water column to the instrumentation above.

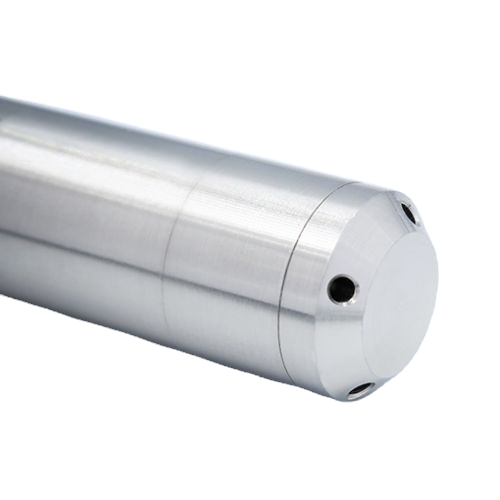

The highly stable 316L stainless steel diaphragm sensor is fully compatible to raw or chlorinated water and most semi-aggressive liquids.
Supplied with a special vented cable to compensate the atmospheric pressure changes, it accurately transmits the measured liquid level. The application-dependent cable length can be defined at the time of purchase to the desired extent and can also be customer adapted at the application site.*
