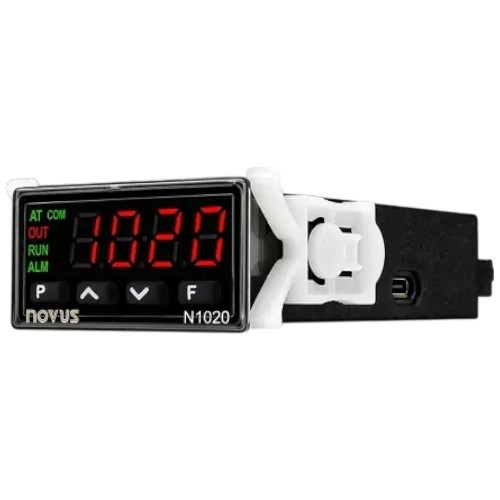

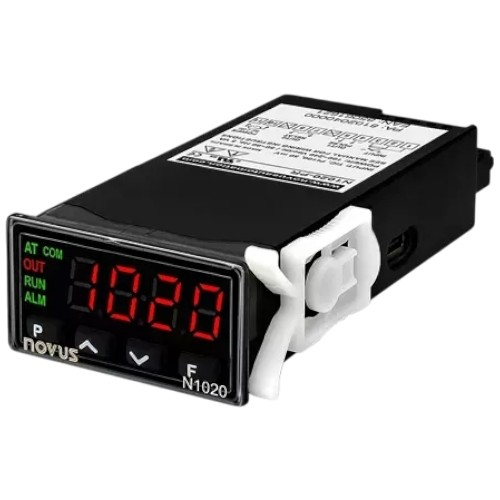

NOVUS, 8102040100, N1020-PR (2024) USB Temperature Controller, 1 Relay Output, 1 Pulse - RS485 - 100 to 240 VAC, 48x24mm (1/32 DIN)
Features:
- Compact and Durable:
- DIN 1/32 format (48 x 24 mm), designed for compact panels.Front panel with IP65 protection, resistant to dust and moisture, suitable for demanding industrial environments.
- Advanced PID Control:
- Self-adaptive PID algorithm that automatically adjusts parameters for maximum precision.
- Features such as ramp and soak (5 programs, 4 segments) for control in complex processes.
- Simple Connectivity and Configuration:
- Easy configuration via USB Type-C, using the free NOVUS QuickTune software.
- Easy Installation and Maintenance:

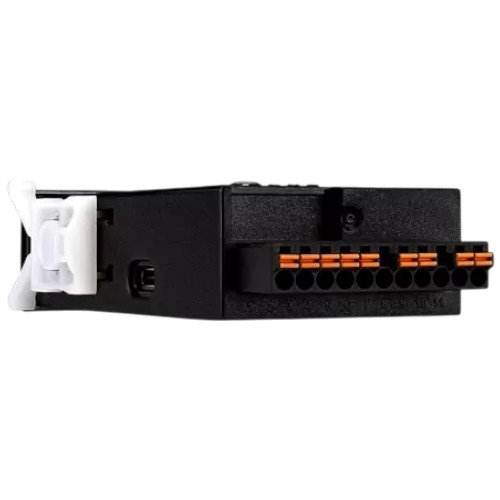

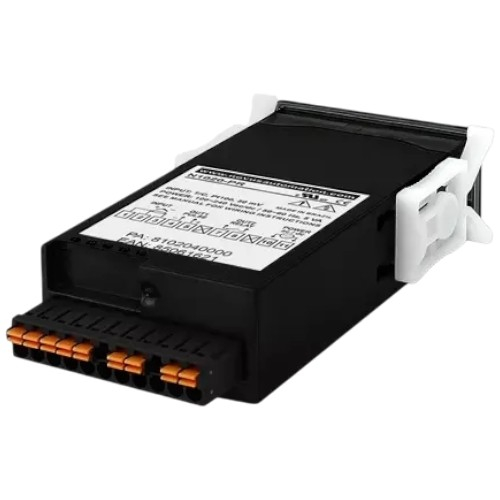

- N1020 features a removable Push-In connector, eliminating the need for tools during installation. This speeds up the process, reduces operational costs, and keeps cabling intact during maintenance.
- Flexible Inputs and Outputs:
- Compatible with a wide range of sensors, including thermocouples (J, K, T, E, S, N, R, B), Pt100, and analog signals like 0-50 mV.
- Output control with 1 pulse and up to 1 relay, offering versatility for different applications.
- Special Functions for Temperature Control:
- Soft-Start, ideal for safely initiating processes.
- Advanced alarms (4 alarms with 9 configurable types) and PID control failure detection (Loop Break Alarm).
- Installation and Connectivity Highlights:
- The Push-In connector simplifies installation, eliminating the need for tools and reducing downtime during maintenance.
- Intuitive configuration via USB, supported by QuickTune software, enabling quick and easy adjustments, even in the field.
Why is the N1020 the Ideal Temperature Controller?
The N1020 is not just an ordinary PID controller. It was designed to deliver real value to your industrial processes, ensuring:
- Maximum precision in thermal control thanks to its self-adaptive PID.
- Reduced operational costs with simplified installation and agile maintenance.
- High reliability in critical systems, thanks to its robust design and IP65 protection.
- Versatile application, suitable for everything from refrigeration to advanced thermal control.
Typical PID Controller Applications
The N1020 temperature controller is widely used in various industrial sectors, such as:
- Food and Beverage Industry: Heating and cooling control in processing equipment.
- Laboratories and Healthcare: Precise temperature control in critical processes and medical equipment.
- Industrial Automation: Integration with advanced systems via Modbus RTU.
- Commercial and Industrial Refrigeration: Efficient solutions for compact systems.
Conclusion
The N1020 Temperature Controller by NOVUS is a cutting-edge solution for industrial process control, combining compact design with advanced technology. With a DIN 1/32 format (48 x 24 mm), it is perfect for applications where space is limited, offering high precision and reliability. The self-adaptive PID technology ensures optimal performance by automatically adjusting control parameters, while features like ramp and soak (20 programs, 9 segments) allow for precise management of complex processes. The N1020 is designed for easy integration and maintenance, featuring a removable Push-In connector that eliminates the need for tools during installation. It supports a wide range of sensors, including thermocouples (J, K, T, E, S, N, R, B), Pt100, and analog signals (0-50 mV, 4-20 mA), and offers flexible outputs with 1 pulse and up to 1 relay. The controller is equipped with advanced functions such as Soft-Start for safe process initiation, configurable alarms, and PID control failure detection. With IP65 protection, USB Type-C configuration via QuickTune software, and RS485 communication with Modbus RTU protocol, the N1020 is a versatile and reliable choice for industries ranging from food and beverage to healthcare and industrial automation.
