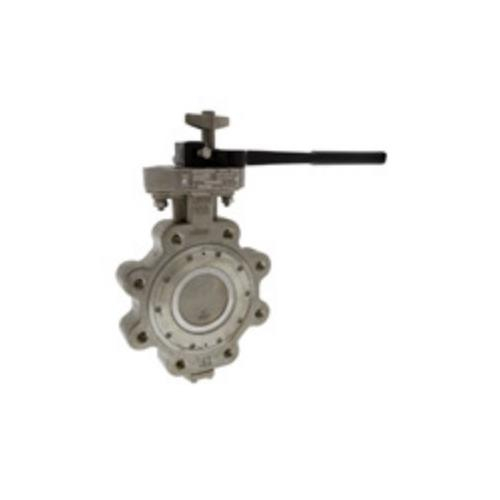

NIBCO, S6-G3L-SSSR-GL, G3L-SSSR High Performance Butterfly Valve - 316 Stainless Steel Body, 740 PSI, 17-4 GL, 6"
The Sure Seal Class 300 high performance lug style butterfly valve features a stainless steel body with stainless steel trim. It is ideally suited for commercial, industrial and mechanical HVAC services. The valve performs isolation and throttling services in heating hot water, condenser water, glycol, chilled water, compressed air, chemical process, and domestic water or steam (on/off 50 PSI modulating).
The lug type butterfly valve features live loaded adjustable packing with a unique flush-mounted packing gland. The high performance valve also provides uni-directional dead-end service and includes an arrow on the body to indicate the flow direction. It includes a one-piece, blowout-proof 17-4PH stainless steel stem with 304 stainless steel bushings PTFE coated. Seats are glass reinforced PTFE to provide exceptional chemical and heat resistance. Other features include the 316 stainless steel, direct mount actuation, integrally cast disc-stop and dual offset design.
Features:
- Valve pressure rating 740 psi
- Maximum operating temperature 400°F at 100 psi
- Lug style
- Glass reinforced PTFE seats
- Blowout-proof stem
- Stainless steel disc and stem
- Integrally cast disc stop
- Dual offset design
- Direct mount actuation
- Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
- MSS SP-68 (design) 100% production tested
- MSS SP-25 (markings)
- API 609 seat pressure/temperature ratings/blow-out proof stem
- ASME/ANSI B16.34A, body pressure/temperature ratings
- ASME/ANSI B16.5 flange dimensions
- ISO 5211 EN 12116 actuator mounting top works
- ANSI Class 300
- Size 6"
