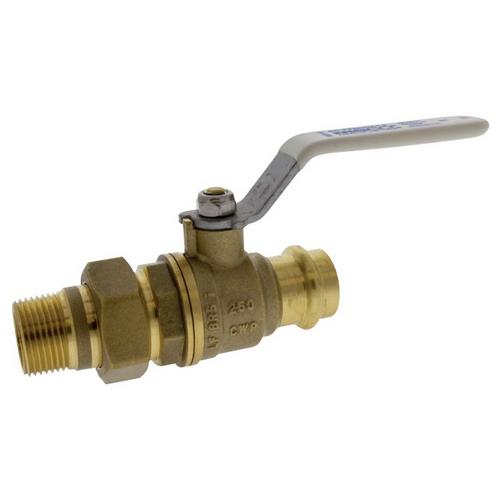

NIBCO, NF99UM7, PCMU-FP600A-LF Ball Valve, Lead-Free, Full Port, Press x MIP Union Ends, 250 PSI, 3/4"x1/2"
The NIBCO Press System ball valve body is manufactured from lead free Brass alloy and is dezincification resistant (DZR). This valve features a single union MIP end by Press-to-connect end connections. The press-to-connect end is engineered with an inboard bead and a leak detection EPDM O-ring press end for quick and easy copper to copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.
The NIBCO Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead free ball valve is specifically designed for use in systems that deliver water for human consumption.
Features:
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum service temperature 250°F
- Copper-to-copper connections
- Press x MIP Union
- Full port
- Blowout-proof stem
- Reinforced PTFE seat rings
- Multiple handle options
- Press leak-detection feature
- Dezincification resistant
- Lead-free
- Conforms to MSS SP-145
- Third party certified to NSF/ANSI 61 & 372
- Not intended for gas use
- IAPMO/ANSI Z1157 (IGC 157)
- Size 3/4"x1/2"
- Extended lever
- EPDM Seal for Press Ends
- Wing Handle
Applications:
- Drinking Water
- Domestic Hot & Cold Water
- HVAC (condensors, chilled water, hot water heating)
- Isolation and Throttling (half-open to full-open only)
- Connect to Rigid Copper Tubing Manufactured per ASTM B88, Condition H (hard drawn)
