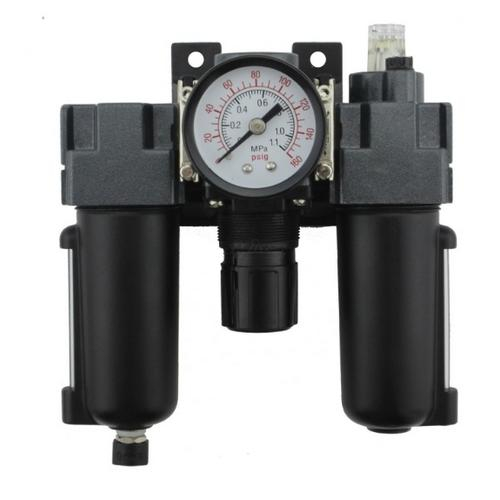

Milton, EX25FRL40A-02M, 1/4in NPT Mini Metal FRL Air Filter Regulator, Lubricator System
EXELAIR by Milton, Simply Better Airline system provides the best solution to manage compressed air. EXELAIRs trio pack saves space by combining features of the filter, regulator & lubricator into one unit. Such as the metal bowl with a capacity of 1.4 oz and an automatic draining, or can be manually drained by rotating shut off at the bottom. Regulator located in the middle includes 1-5/8in dial gauge reads in both PSI/Mpa and a lockout knob to set desired PSI. Attached next the regulator is the lubricator that includes polycarbonate bowl with a capacity of .0845 oz.. FRL Lubricator delivers a consistent mist of oil through the airline and extends tool life which can be refilled either by removing bowl or filling through oil fill cap on top. Oil amount is easily adjusted by rotating dial at the top of the unit. Box includes with a fully assembled unit, mounting bracket with hardware, Max Air Flow of 20CFM and a Max operating pressure 145 PSI. Always install FR 20 feet down line of air compressor to allow air to cool and lessen the amount of water carried through the supply line.
- 1/4 inch national pipe threads on both inlet and outlet
- Automatic & manually draining
- Adjustable PSI range: 5-125 PSI
- Locking adjustable pressure knob
- Rotating oil flow dial
