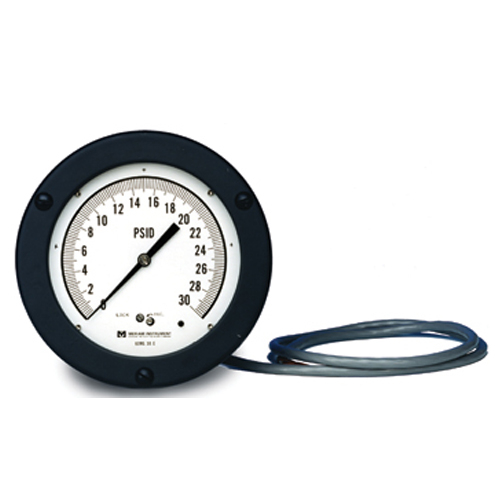

Meriam 1220 Indicating Switch

The Series 1220 Differential Pressure Indicating Switches are used for on-off control or alarm. They also indicate flow, liquid level or other process variables. These units are furnished with one or two SPDT type switches with actuation set points easily adjustable over most of the range of the instrument. The calibrated travel of the pointer is 270° which gives good differential pressure indication and switch resolution. Dials can be supplied with linear scales for differential pressure, square root scales for flow, or custom scales for level. The Series 1220 Switches are used extensively in power plants, compressor stations and cryogenic applications.
