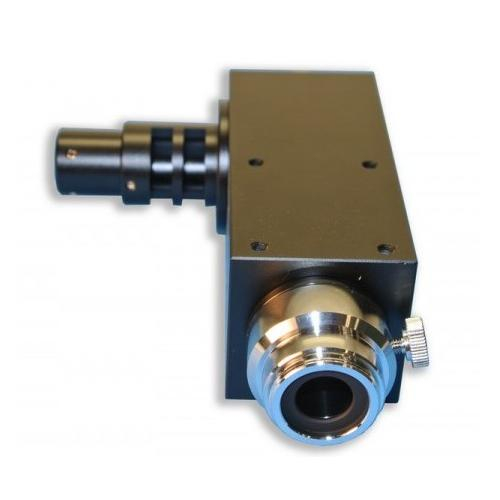

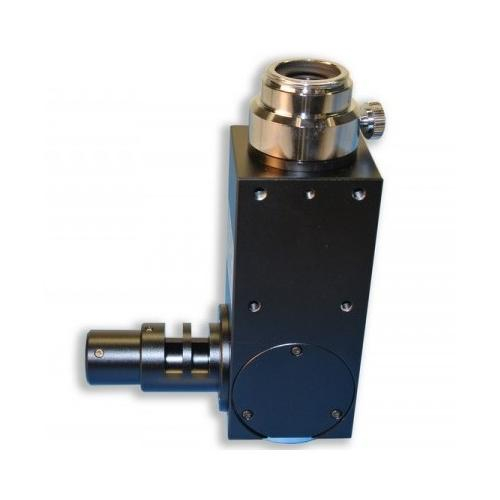

Meiji Techno, VM-2V, Video Microscope 0.5X Magnification Factor with Horizontal "C" Mount
Includes:
- Outstanding high-resolution images
- Single objective port or add optional triple or quadruple nosepieces
- On screen video magnifications from less than 40X to 5500X or more
- Accepts infinity corrected objectives with RMS thread with 200mm focal length
- Rugged aluminum housing
- Mountable on flat surfaces for simple integration and machine vision applications
- Convenient field portability possible with self powered camera and light source
The VM Series high resolution video microscopes have been specifically designed for viewing small electronic components, wave-guides, electro-mechanical assemblies, medical devices, seals, fibers, catheters, etc., which require high magnification visual inspection. The VM Series integrate a CCD video camera, fiber optic illumination system, and high-resolution infinity corrected optics, and are ideal for use in factory automation and machine vision systems. The VM VM-LED Series "C" Mount video microscopes connects an infinity corrected objective to a "C" Mount camera to create a simple high magnification imaging system. The VM Series units are mountable to the VM focus block or other flat mouthing surface via four M4 X M6 threaded mouthing holes with 30 mm. x 40 mm. spacing. The VM Series have a parfocal distance of 45 mm and accepts Din Standard 0.7965” (20.1 mm.) diameter threaded objectives.
