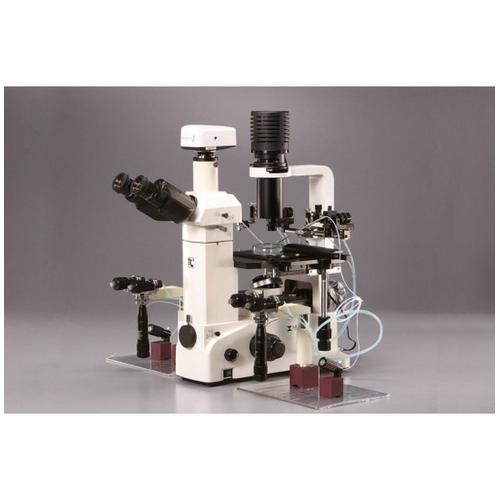

Meiji Techno, TC-5300/SIS-4M, Binocular Inverted Brightfield / Phase Contrast Micromanipulator Injection Microscope System
Includes:
- Binocular Inverted Phase Contrast/Brightfield Compound Microscope, ∞ Infinity Corrected Optical System F-200MM with 6V 30W Halogen Koehler illumination with quintuple nosepiece and auto voltage sensing power supply, with SIS-4M-U Micromanipulator Injector, Adaptor and Manipulator (Drive Unit), Main Control unit, Universal Joint (with Coarse movement remote-control type), Iron plate
- Siedentopf type binocular, inclined at 30°, Interpupillary adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes)
- (x 2) Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm
- TC Long Working Distance LWD Planachromat Phase 4X objective ∞/1.0, W.D. 17.3 mm
- TC Long Working Distance LWD Planachromat Phase 10X objective ∞/1.0, W.D. 7.6 mm
- TC Long Working Distance LWD Planachromat Phase 20X objective ∞/1.0, W.D. 7.0 mm
- TC Long Working Distance LWD Planachromat Phase 40X objective ∞/1.0, W.D. 2.8 mm
- TC Extra Long Working Distance ELWD Condenser, N.A. 0.30, W.D. 73.0mm
- Green interference filter in 51mm mount (546mm)
- Cobalt clear filter in mount in 51mm mount
- Plain stage with 180mm(X) x 245mm(Y) plain stage with replaceable glass insert with 45mm opening
- Glass Stage plate insert for plain stage (Round-109mm diameter, 1.5mm thick with 44.3mm central opening)
- Phase slider
- Centering telescope (O.D. = 30.0)
- Removable AC Electric cord with plug for 115V models
- Bulb 6V 30W Halogen (Factory Installed)
- Fuse 3 Amp (Factory Installed)
- Micromanipulator Injector, Adaptor and Manipulator (Drive Unit), Main Control unit, Universal Joint (with Coarse movement remote-control type), Iron plate
The TC-5300/SIS-4M Series is equipped with micromanipulators used to physically interact with a sample under a microscope, where a level of precision of movement is necessary that cannot be achieved by the unaided human hand. It consist of an input joystick, a mechanism for reducing the range of movement and an output section with the means of holding a microtool to hold, inject, cut or otherwise manipulate the object as required. The mechanism for reducing the movement is free of backlash. This is achieved by the use of kinematic constraints to allow each part of the mechanism to move only in one or more chosen degrees of freedom, which achieves a high precision and repeatability of movement, usually at the expense of some absolute accuracy.
Movement reduction can be performed by mechanical levers, hydraulically using pistons of different diameters connected by tubing containing non-compressible fluid, using combinations of techniques in one instrument. Mechanisms with different ranges of movement or variable reduction ratio may be incorporated in one instrument to allow coarse and fine positioning.
