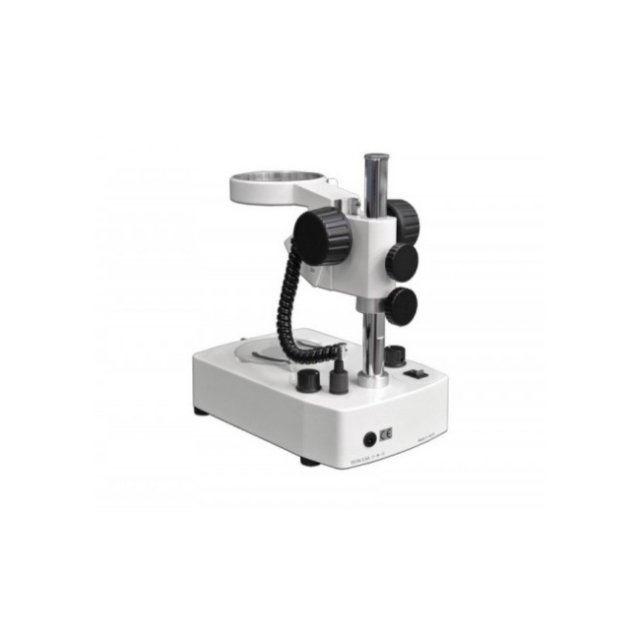

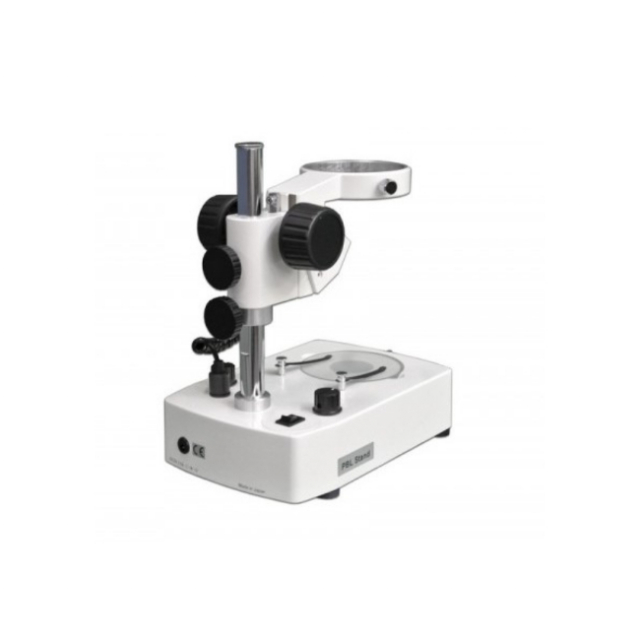

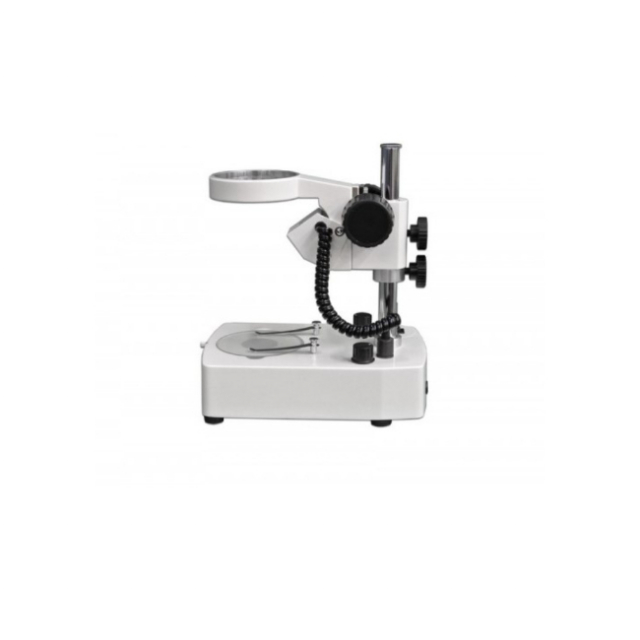

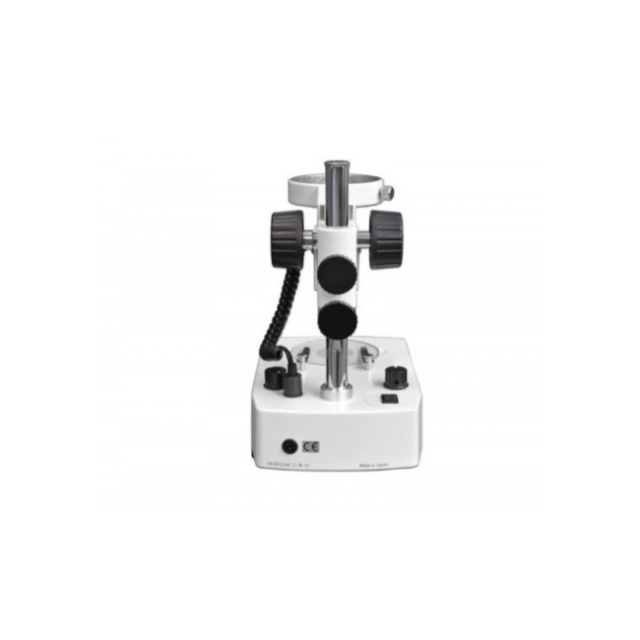

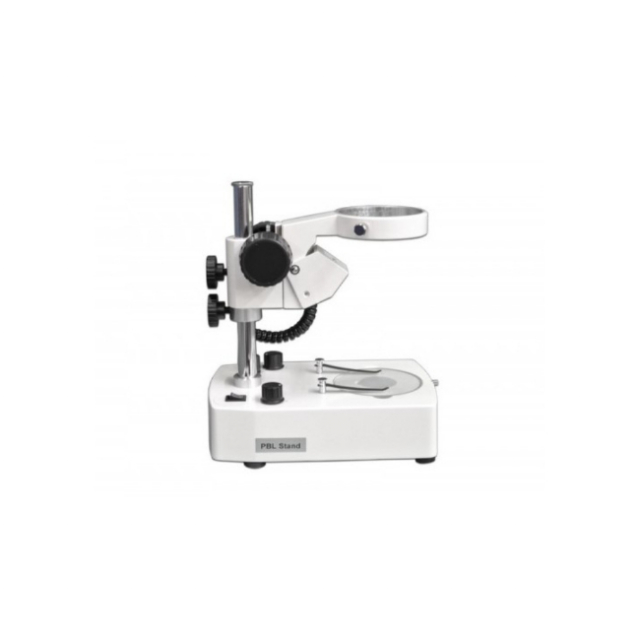

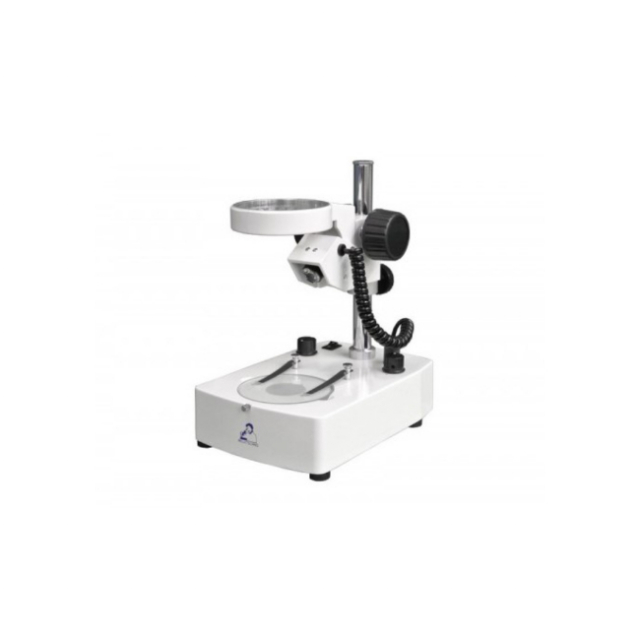

Meiji Techno, PBL, 100V Pole Stand with Transmitted and Incident LED Lighting
PBL Includes Only:
- PBL Stand is a Pole type stand with built- in transmitted and incident LED illumination, which may be operated independently or simultaneously
- Equipped with an integral focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
- Pillar diameter is 20mm, height is 8.5" (216 mm)
- MA569: 94.5mm diameter clear glass stage plate
- MA568: 94.5mm diameter reversible black and white stage plate
- MA593: Two stainless steel stage clips
The Stand is Meiji Techno America's 100V LED stand with built in transmitted and incident LED illumination which may be operated independently or simultaneously. Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568), and 94.5mm clear glass stage plate (MA569) and two stainless steel stage clips (MA593). The PBL Stand is designed for use mostly with zoom (EMZ Series), but can also be used for turret (EMT Series), fixed (EMF Series) stereo bodies. The PBL stand is a great complement to Stereo microscopes due to the focus block's ability to be easily raised vertically if needed for special applications. A 5" extension pillar for the threaded vertical post is also accessible if needed to accomodate taller specimens (MA551). Equipped with a bright 100V LED illumination. 100% MADE IN JAPAN.
Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
