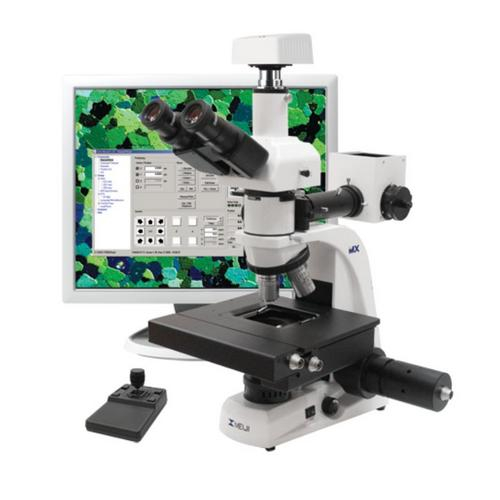

A motorized microscope changes your way of work completely from manual to automated operations enhancing your work efficiency. The design of a motorized microscope focuses on convenience and ease. You operate an integrated system of a microscope, camera and computer without wasting time on manual microscopy. Automated capturing panoramic images of specimens: combining several fields of view into a single image; you set borders of the image and the motorized system generates a macro-specimen automatically.
Automated navigation
If you are interested in a specific object in the specimen the system can save the coordinates of the field of view for it; when needed, the motorized system can quickly return to it from another field of view automatically.
Autofocus
Set the focus automatically while processing a specimen.
Automated analysis
Create a specimen analysis profile and the system will perform required operations automatically; it will only take placing a specimen on the stage and activating the profile to get the system to prepare an analysis report for you automatically.
A motorized microscope is designed for a number of specimens to be placed simultaneously, which allows the system to run a number of tests in one session, reducing the service time of system. If you’ve already got a Meiji Techno metallurgical microscope you can upgrade it with a motorized stage, automated focus and control unit to get a motorized microscope.
Features:
- Motorized stage for metallurgical microscope, 75x30 mm
- Automated focus control (Z-movement)
- Mechanical stage and focus control
- Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS
- PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080
- Keyboard and Mouse
- ICOS™(Infinity Corrected Optical System with tube lens: F=200 mm) with advanced optics
- Super widefield eyepieces 10x (for spectacle wearers), 20 mm linear field
- Revolving quadruple nosepiece for 4 objectives
- Reflexless Planachromat Epi brightfield/darkfield objectives: BD 5x, BD 10x, BD 20x, BD 50x
- Reflected Koehler illuminator with halogen light source (12 V, 50 W), field iris, aperture diaphragm and slots for filters, power supply with automatic voltage detection and brightness adjustment (stationary)
- Transmitted Koehler illuminator with halogen light source (6V, 30W), built-in power supply with automatic voltage detection and brightness adjustment
- Integrated digital video cameras for photo and video recording
- Research methods include reflected and transmitted light, brightfield, darkfield and polarization
- High Power PC system included for Photo and video documentation
