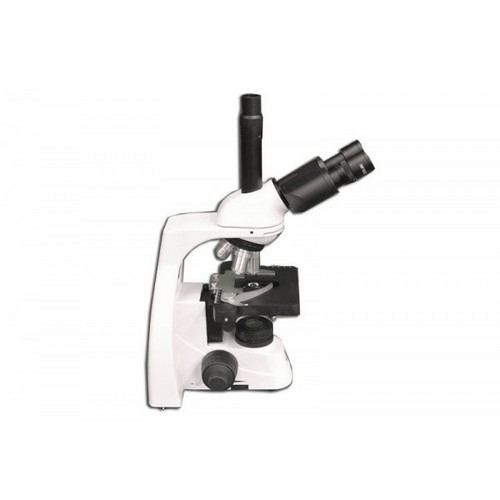

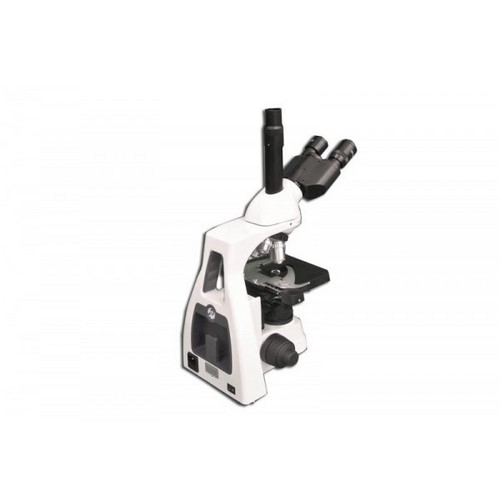

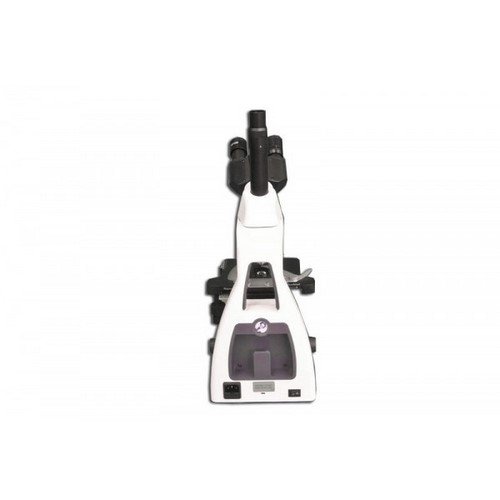

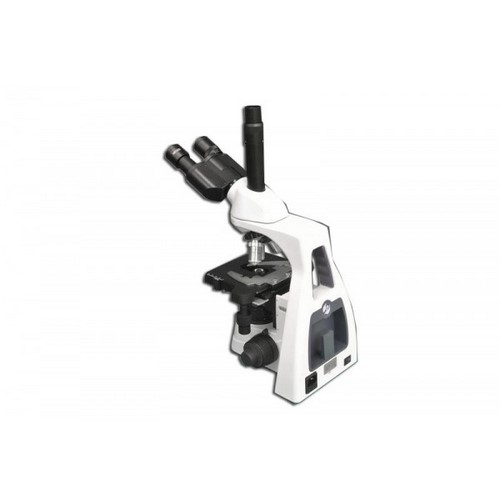

Meiji Techno, MT-430, University Laboratory Brightfield Biological Compound Microscope

Trinocular Microscope E. Plan 4X, 10X, 40X, 100X oil objective. Infinity Corrected Optical System with Mechanical Stage and LED illumination

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Viewing Head	Trinocular 30° inclined tube with 23.2 mm Photo Port, Interpupillary distance adjustment 48-76mm, 360° degree rotatable, 16mm filter tray
Eyepieces	Paired HWF 10x/20mm F.O.V. 23.3mm eyepiece with integrated diopter adjustment
Objectives	Infinity Corrected Plan Achromat 4x/N.A. 0.10, 10x/N.A. 0.25, 40x/N.A. 0.65 spring loaded, 100x oil/N.A. 1.25 spring loaded objectives, 180mm tube length.
Fungus Protection	All optical parts are anti-fungus treated.
Nosepiece	Revolving quintuple reversed nosepiece on ball-bearings, RMS threads
Stage	152mm x 131mm stage with integrated mechanical stage, X-Y movement of 75mm x 36mm rackless stage, Locked-on spring loaded stage clip (paired)
Condenser	Abbe condenser, N.A. 1.25 with a slider housing for sliders and pinion for vertical movement
Focusing Adjustment	Coaxial coarse and 200 µm fine adjustments, 2 µm precision, Friction adjustment, Rack and pinion focusing with slip clutch and tension adjustment, "Slip-clutch" system protects against over-focusing
Illumination	3 W intensity adjustable LED illumination with internal power supply/charger, Auto voltage sensing power supply, 100-240V

Viewing Head	Trinocular 30° inclined tube with 23.2 mm Photo Port, Interpupillary distance adjustment 48-76mm, 360° degree rotatable, 16mm filter tray
Eyepieces	Paired HWF 10x/20mm F.O.V. 23.3mm eyepiece with integrated diopter adjustment
Objectives	Infinity Corrected Plan Achromat 4x/N.A. 0.10, 10x/N.A. 0.25, 40x/N.A. 0.65 spring loaded, 100x oil/N.A. 1.25 spring loaded objectives, 180mm tube length.
Fungus Protection	All optical parts are anti-fungus treated.
Nosepiece	Revolving quintuple reversed nosepiece on ball-bearings, RMS threads
Stage	152mm x 131mm stage with integrated mechanical stage, X-Y movement of 75mm x 36mm rackless stage, Locked-on spring loaded stage clip (paired)
Condenser	Abbe condenser, N.A. 1.25 with a slider housing for sliders and pinion for vertical movement
Focusing Adjustment	Coaxial coarse and 200 µm fine adjustments, 2 µm precision, Friction adjustment, Rack and pinion focusing with slip clutch and tension adjustment, "Slip-clutch" system protects against over-focusing
Illumination	3 W intensity adjustable LED illumination with internal power supply/charger, Auto voltage sensing power supply, 100-240V

Note: Please read description carefully. Do not base your order on the picture presented.
