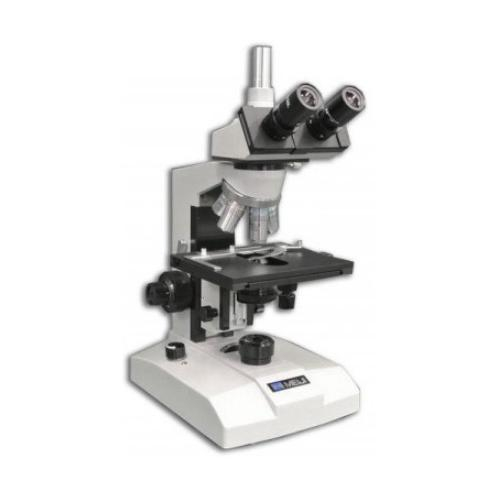

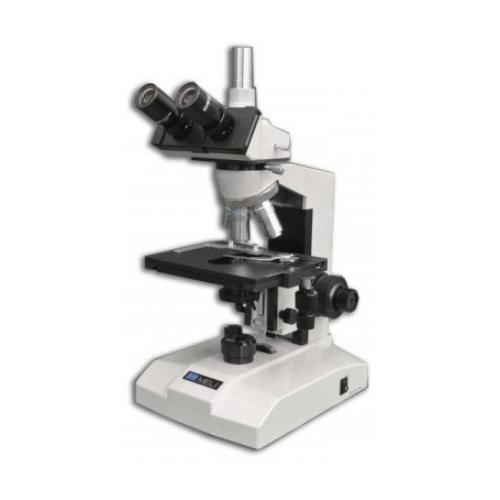

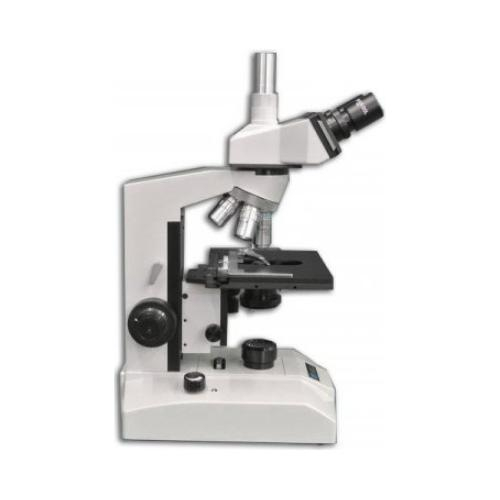

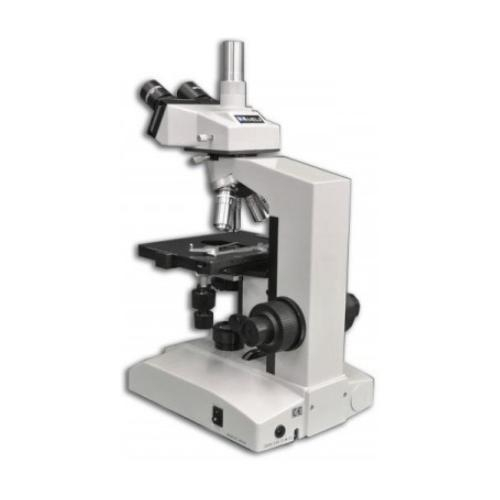

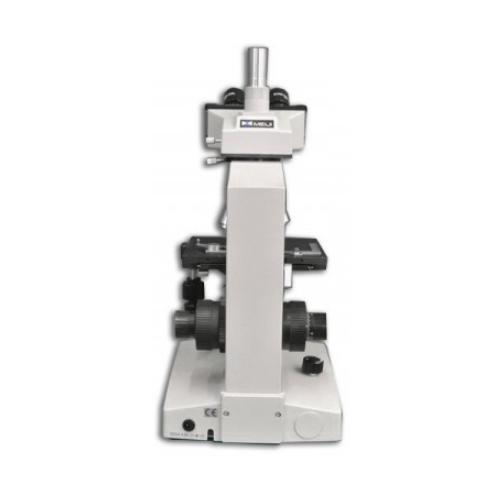

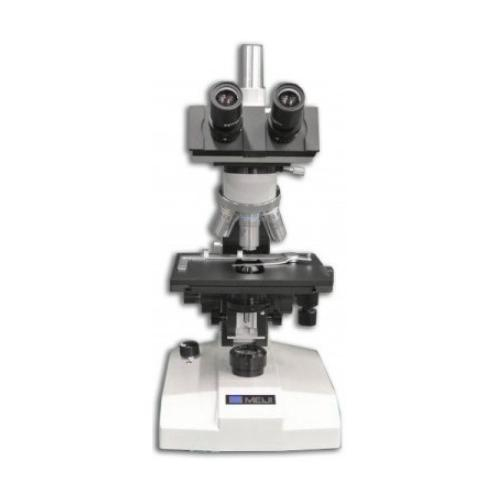

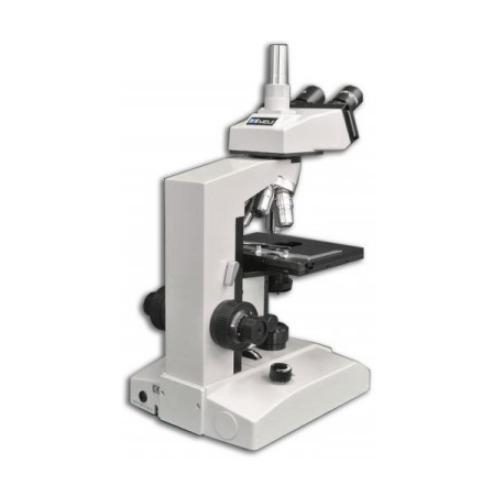

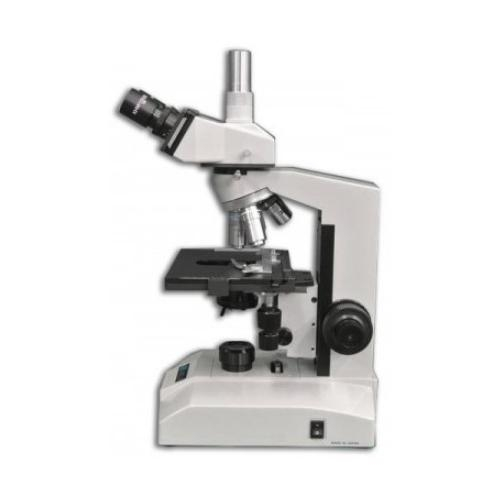

Meiji Techno ML5300L LED Trinocular Biological Microscope

ML5300L Includes Only:

• Brightfield Trinocular Laboratory Compound microscope
• Binocular head Inclined at 30°, 360° rotatable, dual graduated diopter eyetubes with interpupillary adjustments 52 mm to 72 mm
• DIN HWF10X eyepiece
• 4x/0.10 Planachromat objective, Non-Infinity 160 mm Tube Length
• 10x/0.25 Planachromat objective, Non-Infinity 160 mm Tube Length
• 40x/0.65 Planachromat objective, spring loaded, Non-Infinity 160 mm Tube Length
• 100x/1.25 Planachromat objective, spring loaded, Non-Infinity 160 mm Tube Length
• Achromatic substage condenser 1.25 NA with iris diaphragm and 30 mm filter tray
• Flat-Top Mechanical stage with 171 mm and 140 mm rectangular stage with movement of 78 mm (X) x 52 mm (Y) with Ergonomically placed drop down low positioned coaxial controls and a detachable specimen guide. (Factory Installed)
• Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever
• Blue filter, clear, 29.8 mm diameter
• Attachable clinical specimen holder
• Flat-top stage with clinical specimen holder, 78 mm X 52 mm, X-Y movement, with drop-down coaxial controls
• 3W LED, 5500K color temperature
• AC adapter
• Immersion Oil 15cc
• Dust Cover
• Manual

The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background. Has a Koehler LED illumination with a reverse facing quintuple ball bearing nosepiece and auto voltage sensing power supply. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination
