Buy Meiji Techno HD1350, HDMI/USB 2.0, 3.5MP Camera w/ Software

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

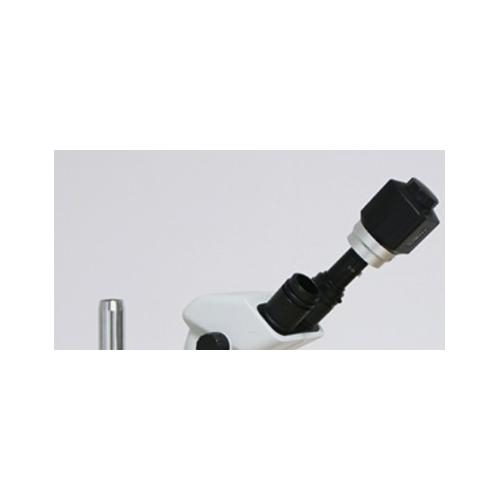

Meiji Techno, HD1350, HDMI/USB 2.0, 3.5MP Camera w/ Software and 30 FPS & Focusing Chip.

Includes:

HD1350 - Camera HDMI 1/2.8" CMOS Chip
HDMI to HDMI Cable 3 foot long cable
USB 2.0 to USB2.0 cable
Power Supply 12V AC/DC adapter
Measurement Software with Annotation Feature Installation Disc

High sensitivity 3.5 million CMOS sensor and 1080P Digital HD image displayAvoid tedious adjustment work and directly change the operation distance through eye-height adjustment work directly change the operation distance through eye-height adjustment ring (eye height effective value BFL: 11.6- 36mm) and expand the original magnification ratio of the microscope.30 FPS ( frames per second) high-speed display without trailing ghost image due to high speed and stable real time image transmission.Under HDMI mode, HDR wide dynamic represses strong light reflection functionDual output HDMI & USB Support photography/recording and real storage of SD card for on-site analysis and subsequent research.HDMI line is flat and soft. Any minor twist or bend will not affect the stability of the transmission of the line. Structure design of version 1.3 can realize quick transmission and higher anti-interference performance, ensure barrier-free signal transmission of the product and offer you high definition

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

image sensor	Aptina AR0330 CMOS Sensor
scan mode	scan line by line
maximum resolution	2304 x 1536 (3,538,944 pixels)
sensor optical format	1/3" (5.07mm H, 3.38mm V, 6.0mm Diagonal)
pixel size	2.2um x 2.2 um
dynamic range	69.5dB
SNRmax	39dB
spectral Caractristics	380-650nm
HDMI output resolution	1920x1080i60 , 1920x1080P30 , 1980x720P60 , 640x480P60
video mode resolution	1920x1080@30FPS , 1280x720P@30FPS , 800x480@30FPS
snapshot mode resolution	2304x1536 , 2304x1296 , 1920x1080 , 1280x720 , 800x480
exposure capability	Real-time auto, Single auto , Manual adjustment
white balance	Real-time auto, Single auto , Manual adjustment
picture resolution	2304x1536 , 2304x1296 , 1920x1080 , 1280x720 , 800x480
picture format	JPG
video resolution	1920x1080@30FPS , 1280x720P@30FPS , 800x480@30FPS
video format	MOV
record route	the local and TF card(Maximum Support 64G)
camera interface	C mout thread (1" x 1/32) BFL: 11.6-36mm
wired picture interface HDIM model	TYPE C (Mini HDMI)
wired picture interface USB model	micro USB
charger interface	micro USB, DC5.0V (electronic current 500mA or higher)
USB mode operation system	microsoft windows XP/7/8/8.1/10 (32x64)
USB mode computer configuration CPU	equal or more than the second generation intel core 2.8GHz
USB mode computer configuration memory	2G or more
USB mode computer configuration USB port	USB 2.0 high speed port or compatible port
USB mode computer configuration Displayer	suggest 17" or larger
HDMI mode displayer	Recommend 16:9 , at least 1080P Full HD displayer
HDMI mode power supply	DC5.0V power adapter, electronic current 500mA or higher
operating temperature	0 C ~ 40 C
storage temperature	-20 C ~ 60 C
operating humidity	30-80%RH
storage humidity	10-60%RH

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

image sensor	Aptina AR0330 CMOS Sensor
scan mode	scan line by line
maximum resolution	2304 x 1536 (3,538,944 pixels)
sensor optical format	1/3" (5.07mm H, 3.38mm V, 6.0mm Diagonal)
pixel size	2.2um x 2.2 um
dynamic range	69.5dB
SNRmax	39dB
spectral Caractristics	380-650nm
HDMI output resolution	1920x1080i60 , 1920x1080P30 , 1980x720P60 , 640x480P60
video mode resolution	1920x1080@30FPS , 1280x720P@30FPS , 800x480@30FPS
snapshot mode resolution	2304x1536 , 2304x1296 , 1920x1080 , 1280x720 , 800x480
exposure capability	Real-time auto, Single auto , Manual adjustment
white balance	Real-time auto, Single auto , Manual adjustment
picture resolution	2304x1536 , 2304x1296 , 1920x1080 , 1280x720 , 800x480
picture format	JPG
video resolution	1920x1080@30FPS , 1280x720P@30FPS , 800x480@30FPS
video format	MOV
record route	the local and TF card(Maximum Support 64G)
camera interface	C mout thread (1" x 1/32) BFL: 11.6-36mm
wired picture interface HDIM model	TYPE C (Mini HDMI)
wired picture interface USB model	micro USB
charger interface	micro USB, DC5.0V (electronic current 500mA or higher)
USB mode operation system	microsoft windows XP/7/8/8.1/10 (32x64)
USB mode computer configuration CPU	equal or more than the second generation intel core 2.8GHz
USB mode computer configuration memory	2G or more
USB mode computer configuration USB port	USB 2.0 high speed port or compatible port
USB mode computer configuration Displayer	suggest 17" or larger
HDMI mode displayer	Recommend 16:9 , at least 1080P Full HD displayer
HDMI mode power supply	DC5.0V power adapter, electronic current 500mA or higher
operating temperature	0 C ~ 40 C
storage temperature	-20 C ~ 60 C
operating humidity	30-80%RH
storage humidity	10-60%RH

Note

Note: Please read description carefully. Do not base your order on the picture presented.
