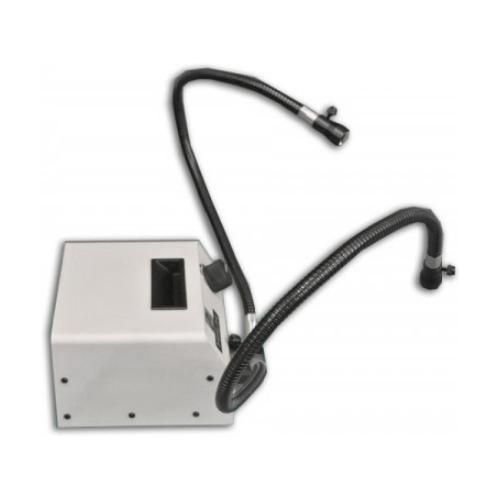

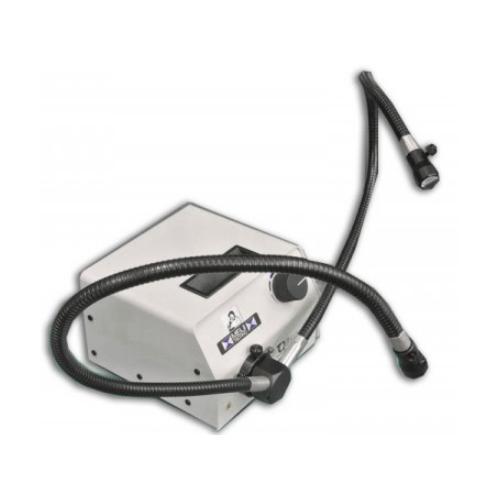

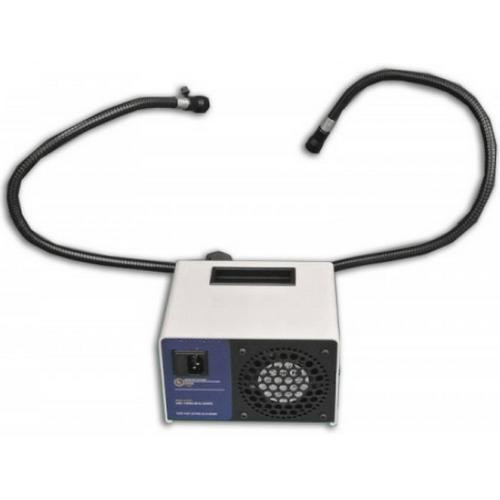

FQ151/220 Includes Only:
- FQ151 Illumination System
- FQ150/05 Self Supporting Single Gooseneck Cables
- FQ150/50 Focus Lens Assembly
Halogen Illumination SystemFeatures:
- High Output 150 watt quartz halogen
- Halogen Lamp 21V 150W
- 220V, 50/60Hz Operation
- Single on/off intensity control increases lamp life
- Easy lamp access without tools
- Heavy duty all metal construction
- Lamp color temperature: 3250K
- AC Fan included
- Long life ball bearing cooling fan
- Very Low noise and vibration
- Proven design and extremely high reliability
- Accepts virtually all light guides
- Optional tethered simple remote control with 8' cord
- Dimensions : 7"W x 7"L x 6"H
- Output aperture 1" (25.4 mm) standard
Self Supporting Single Gooseneck CablesFeatures:
- Dual Arm
- Obedient
- Black Electroplated Metal Sheathing
- 24" length
- No focus lenses
- Active Fiber Diameter of 0.265" (4.76 mm)
- Distal End Tip (Lens End) of 5/16" (7.94 mm)
- Proximal End Tip of 1.0" (25.4 mm)
Focus Lens Assembly Features:
- Allow for variable spot light adjustments making these ideal for situations where intense illumination is required
- It has a proximal end tip of 0.625"
Illuminator are use in a wide range of manufacturing, microscopy, metrology, medical, research, and other applications. The Fiber Optic Illuminators are often referred to as "Cold Light" Illuminators because they provide high intensity, focused light without the heat typically associated with high intensity lamps. The common uses for the are: Microscopes and Video Microscopes Boroscopes, Industrial Imaging (Machine Vision), and Custom Process and Inspection Equipment (Wire Bonders, Laser Welding). Allows a uniform halogen illumination of focused white light which can be used in different applications. Included is an on/off intensity control which allows easy adjustment of intensity. In addition, the lock-in feature allows light guides to stay in place and permits the illuminator to operate on its back without fear of falling off. The arm length is 24" and has a 0.265" main fiber bundle diameter
