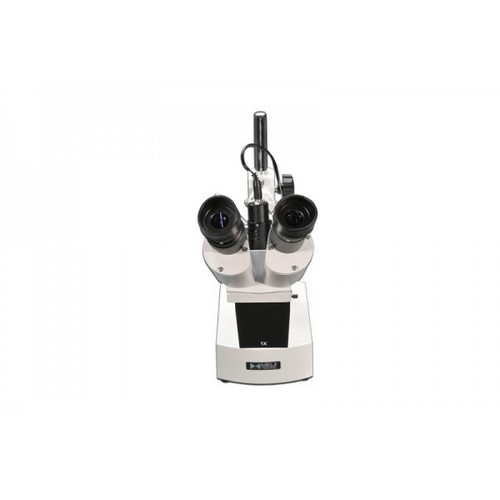

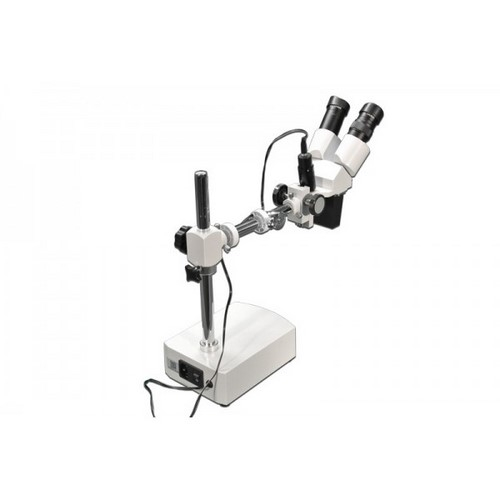

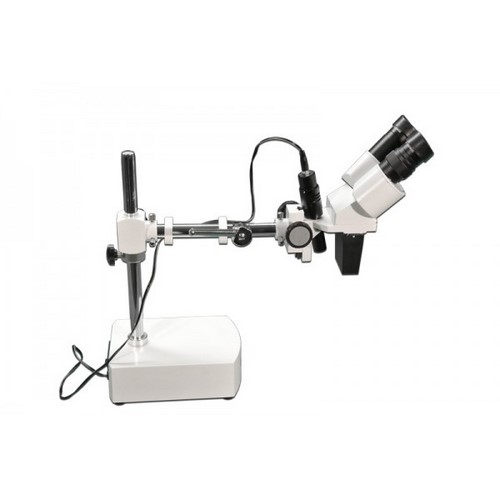

Buy Meiji Techno BMK-3/LED, Stereo Binocular Microscope 10x with LED Light

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Magnification:: Magnification: 10x

This is Meiji Techno America's stereo binocular microscope system with a body total magnification of 10X. This system includes a 10X eyepiece with an eyetube angle of 45°. This system includes a post stand, a LED reflection illuminator, and an oblique top light. Its input voltage is AC100-240V 50/60Hz.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Optical System
Optical System	Finite
System Optical Magnification	10X
Total Magnification	10X
Standard Eyepiece	10X Eyepiece
Standard Objective	1X Objective
System Field of View	20mm
System Working Distance	230mm
Fixed Body
Body Optical System	Finite
Body Magnification	1X
Observation Method	Binocular
Eyetube Adjustment Mode	Siedentopf
Eyetube Angle	45°
Erect/Inverted Image	Erect image
Eyetube Rotatable	Fixed
Interpupillary Adjustment	55-75mm
Eyetube Inner Diameter	30.5mm
Eyepiece Diopter Adjustable	Left ±5°, Right Not Adjustable
Eyetube Fixing Mode	Locking Screw
Eyepiece Type	Standard Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eyetube	30.5mm
Eyepiece Field of View	20mm
Post Stand
Stand Type	Post Stand
Vertical Post Height	280mm
Vertical Post Diameter	18mm
Cross Adapter Type	Dual Hole Adapter
Horizontal Arm Type	Horizontal Post
Horizontal Arm Length	190mm
Horizontal Diameter	18mm
Mounting Hole on the Top of Horizontal Arm	18mm
Horizontal Rotation Angle	360° Rotatable
Horizontal Arm Travel Distance on Z-Axis	200mm
Horizontal Arm Travel Mode on Horizontal Direction	Manual
Horizontal Arm Travel Mode on Z Direction	Manual
Base Type	Table Base
Base Shape	Rectangle
Base Dimensions	190x130x55mm
Arbor Length	70mm
Arbor Diameter	18mm
Arbor Rotation Range on Z Direction	180°
Arbor Adapter Type	Fixed
Microscope Illuminator
Illumination Type	LED Reflection Light
Top Illumination	Oblique Top Light
Top Illumination Type	LED
Power Supply
Output Power	6W
Input Voltage	AC 100-240V 50/60Hz
Output Voltage	DC 6V
Power Cord Connector Type	USA 3 Pins
Power Cable Length	1.5m
Other Parameters
Surface Treatment	Spray Paint
Material	Metal
Color	White
Dimensions	450x130x380mm (17.717"x5.118"x14.961")

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Optical System
Optical System	Finite
System Optical Magnification	10X
Total Magnification	10X
Standard Eyepiece	10X Eyepiece
Standard Objective	1X Objective
System Field of View	20mm
System Working Distance	230mm
Fixed Body
Body Optical System	Finite
Body Magnification	1X
Observation Method	Binocular
Eyetube Adjustment Mode	Siedentopf
Eyetube Angle	45°
Erect/Inverted Image	Erect image
Eyetube Rotatable	Fixed
Interpupillary Adjustment	55-75mm
Eyetube Inner Diameter	30.5mm
Eyepiece Diopter Adjustable	Left ±5°, Right Not Adjustable
Eyetube Fixing Mode	Locking Screw
Eyepiece Type	Standard Eyepiece
Eyepiece Optical Magnification	10X
Plan Eyepiece	Plan Eyepiece
Eyepiece Size for Eyetube	30.5mm
Eyepiece Field of View	20mm
Post Stand
Stand Type	Post Stand
Vertical Post Height	280mm
Vertical Post Diameter	18mm
Cross Adapter Type	Dual Hole Adapter
Horizontal Arm Type	Horizontal Post
Horizontal Arm Length	190mm
Horizontal Diameter	18mm
Mounting Hole on the Top of Horizontal Arm	18mm
Horizontal Rotation Angle	360° Rotatable
Horizontal Arm Travel Distance on Z-Axis	200mm
Horizontal Arm Travel Mode on Horizontal Direction	Manual
Horizontal Arm Travel Mode on Z Direction	Manual
Base Type	Table Base
Base Shape	Rectangle
Base Dimensions	190x130x55mm
Arbor Length	70mm
Arbor Diameter	18mm
Arbor Rotation Range on Z Direction	180°
Arbor Adapter Type	Fixed
Microscope Illuminator
Illumination Type	LED Reflection Light
Top Illumination	Oblique Top Light
Top Illumination Type	LED
Power Supply
Output Power	6W
Input Voltage	AC 100-240V 50/60Hz
Output Voltage	DC 6V
Power Cord Connector Type	USA 3 Pins
Power Cable Length	1.5m
Other Parameters
Surface Treatment	Spray Paint
Material	Metal
Color	White
Dimensions	450x130x380mm (17.717"x5.118"x14.961")

Note

Note: Please read description carefully. Do not base your order on the picture presented.
