Mark-10 TSTH Horizontal Hand Wheel-Operated Motorized Stand, 100 lbFin

TSTH, Horizontal Hand Wheel-Operated Motorized Torque Test Stand, 100 lbFin / 11.5 Nm

The TST Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbFin, including closure torque testing, fastener torque testing, and more. Smooth hand wheel operation ensures ease of use and a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator. The TST's versatile modular design allows it to be configured for a variety of torque sensors and gripping fixtures.

Includes:

• Allen wrench set
• Indicator mounting kit
• Column cap with hardware
• 4 x Thumb screw for mounting indicator
• Resource CD
• 2 x Mounting leg with hardware
• Additional column cap with hardware

Features:

• Maximum torque: 100 lbFin (11.3 Nm)
• Maximum angular travel: no l imit

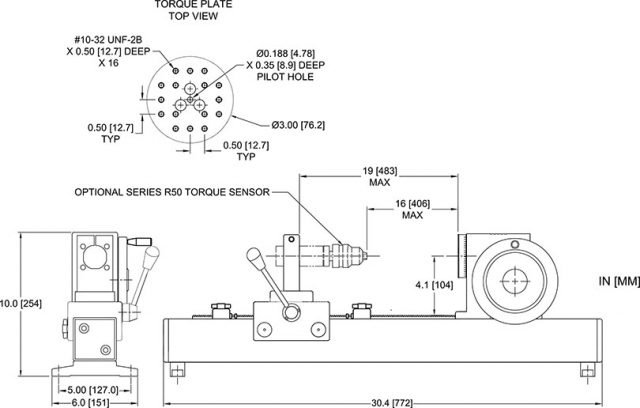

• Throat: 4.10" (104 mm)
• Angular rate: 12° / wheel rev.
• Angle dial with 2° resolution (optional digital angle indicator has 0.1° resolution, see below)
• Maximum slider travel: 15.5" (394 mm)
• Slider travel rate: 1.047" (26.6 mm)/lever rev
• Adjustable travel stops

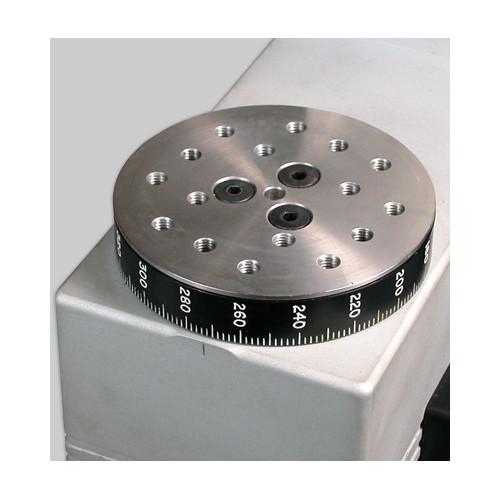

• Torque plate with tapped holes for grip and fixture mounting
• Smooth hand wheel operation
• Lever operated slider for engaging and disengaging samples
