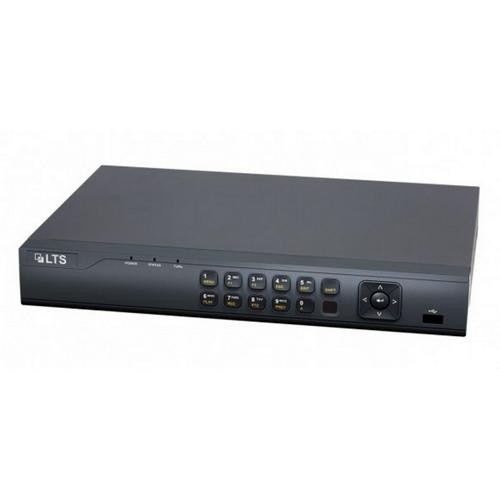

LTS, LTN8704Q-P4, Platinum Professional Level 4 Channel Video Recorder NVR - 4K

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Video/Audio Input
IP Video Input	4CH
Two Way Audio Input	1- ch, RCA (2.0 Vp- p, 1kΩ)
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	80Mbps
Video/Audio Output
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output	4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x1200/60Hz, 1280 x 1024/60 Hz, 1280 x 720/60Hz, 1024 x 768/ 60Hz
VGA Output	1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output	1CH, RCA (Linear, 1kΩ)
Decoding	H.265/H.265+/H.264/H.264 Zip+/MPEG4
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback	4CH
Capability	1-ch at 8 MP / 4-ch at 1 080p
Hard Disk
SATA	1 SATA interfaces for 1 HDDs
Capacity	Up to 6TB capacity for each disk
External Interface
Network Interface	1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Network Protocols	TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™ , HTTPS
USB Port	2 x USB2.0
General
Power Supply	48V DC
Consumption	≤ 10W (without enabling PoE)
Working Temperature	14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity	10% - 90%
Chassis	1U Casing
Dimension	315 x240x 48mm (12.4x9.4 x 1.9 inch)
Weight	≤ 1 kg (2.2 lb)

Video/Audio Input
IP Video Input	4CH
Two Way Audio Input	1- ch, RCA (2.0 Vp- p, 1kΩ)
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	80Mbps
Video/Audio Output
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI Output	4K (3840 x 2160)/30Hz, 1920 x 1080p/60Hz, 1600 x1200/60Hz, 1280 x 1024/60 Hz, 1280 x 720/60Hz, 1024 x 768/ 60Hz
VGA Output	1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Video Output	1CH, RCA (Linear, 1kΩ)
Decoding	H.265/H.265+/H.264/H.264 Zip+/MPEG4
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback	4CH
Capability	1-ch at 8 MP / 4-ch at 1 080p
Hard Disk
SATA	1 SATA interfaces for 1 HDDs
Capacity	Up to 6TB capacity for each disk
External Interface
Network Interface	1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Network Protocols	TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™ , HTTPS
USB Port	2 x USB2.0
General
Power Supply	48V DC
Consumption	≤ 10W (without enabling PoE)
Working Temperature	14°F - 131°F(-10 °C ~ +55 °C)
Working Humidity	10% - 90%
Chassis	1U Casing
Dimension	315 x240x 48mm (12.4x9.4 x 1.9 inch)
Weight	≤ 1 kg (2.2 lb)

Note: Please read description carefully. Do not base your order on the picture presented.
