Buy Lovejoy 69790493943, SU-6 Type 185-6 Complete Coupling

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 69790493943, SU-6 Type 185-6 Complete Coupling

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	Standard
Type	Disc Coupling
Material	Steel
Style	Bored
Weight	28.30 lb
Color	Metallic
Coupling Series	SU-6
Coupling Type	Disc
Size	185-6
Keyway Size (W x D)	1/2 x 1/4 Both Ends in
Set Screw Style Coupling Size (Dimension T)	1/2-13 & 3/8-16

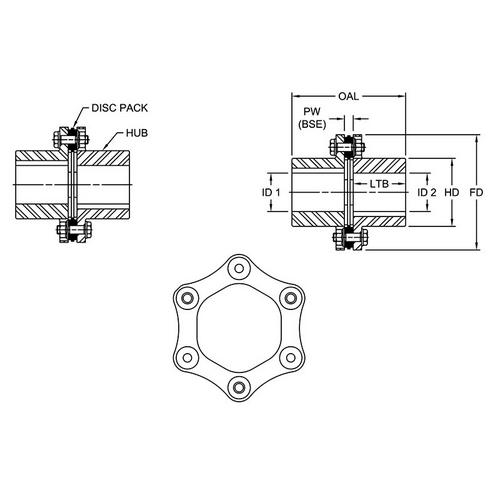

Length thru Bore	3.150 in (80.01 mm)
Dimension FD	7.280 in (185.00 mm)
Overall Length	6.850 in (174.00 mm)
Max. Bore (Dimensions ID1/ID2)	3.13 in (80 mm)
Dimension HD	4.41 in (112 mm)
Distance between Shaft Ends (Dimension BSE)	0.551 in (14.00 mm)
Cubic inches	363.03904 in3
Bore Size	2.1265 & 2.2515 in
Temperature	-40 to 450 °F
Nominal Torque	29200 in-lb
Max. Torque	58400 in-lb
Max. Speed (Unbalanced)	4200 rpm
Max. Speed (Balanced)	10500 rpm
Max. Angular Misalignment	1.50 °
Torsional Stiffness x 10^6 (of one disc pack)	11.50 in-lb/rad
Rated Power at 100 rpm	46.30 hp (34.50 kW)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	Standard
Type	Disc Coupling
Material	Steel
Style	Bored
Weight	28.30 lb
Color	Metallic
Coupling Series	SU-6
Coupling Type	Disc
Size	185-6
Keyway Size (W x D)	1/2 x 1/4 Both Ends in
Set Screw Style Coupling Size (Dimension T)	1/2-13 & 3/8-16
Length thru Bore	3.150 in (80.01 mm)
Dimension FD	7.280 in (185.00 mm)
Overall Length	6.850 in (174.00 mm)
Max. Bore (Dimensions ID1/ID2)	3.13 in (80 mm)
Dimension HD	4.41 in (112 mm)
Distance between Shaft Ends (Dimension BSE)	0.551 in (14.00 mm)
Cubic inches	363.03904 in3
Bore Size	2.1265 & 2.2515 in
Temperature	-40 to 450 °F
Nominal Torque	29200 in-lb
Max. Torque	58400 in-lb
Max. Speed (Unbalanced)	4200 rpm
Max. Speed (Balanced)	10500 rpm
Max. Angular Misalignment	1.50 °
Torsional Stiffness x 10^6 (of one disc pack)	11.50 in-lb/rad
Rated Power at 100 rpm	46.30 hp (34.50 kW)

Note: Please read description carefully. Do not base your order on the picture presented.
