Love Controls 25023 2500 Temperature/Controller RTD Input

Input/Output: RTD Input, Relay Output, Alarm: Without Alarm
  • Condition
    Brand New
Availability
2 Weeks Factory Lead Time
Check Availability
Quantity
Share:

Options and Related Products

Input/Output:
Input/Output: RTD Input, Relay Output
Alarm:
Alarm: Without Alarm

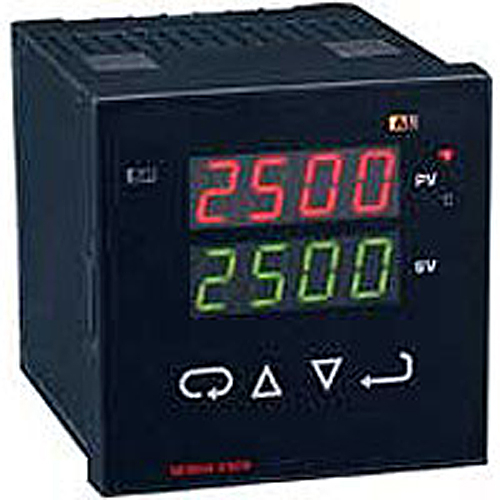

Love Controls, 25023, Series 2500 Temperature/Controller RTD Input, Relay Output, No Alarm

The Series 2500 Temperature Control provides an impressive array of features in an economical 1/4 DIN package. Features include on-off, time proportioning, proportional, PI, PD, or full PID control, programmable from the front panel, or use Self-Tune PID.

A water and corrosion resistant front panel (NEMA 4X; IP65), input fault timer, digital input filter, Self-Tune ramp to setpoint, four password protected security levels and °F or °C display selection are all standard. Entire electronics package is field replaceable without wiring changes thanks to removable front panel.

Approvals

  • UL-Process Control Equipment-Canada
  • UL-Process Control Equipment-US

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
InputsInput: RTD
Input ImpedanceRTD current = 200 μA maximum
DisplayTwo 4-digit, 7 segment, 0.56" high LED
Resolution1 degree or 0.1 degree
Accuracy±0.25% of span, ±1 degree
Supply Voltage100-240 VAC nominal, ±10%, 50-400 Hz, single phase; 132-240 VDC nominal, ±10%
Power Consumption5 VA maximum
Operating Temperature14 to 131°F (-10 to 55°C)
Memory BackupNon-volatile memory. No batteries required
Control Output Ratings Relay: SPDT, 10 A @ 240 VAC resistive; Switched Voltage (non-isolated) 5 VDC @ 20 mA
Control ActionSelectable for reverse (usually heating) or direct (usually cooling)
RampOne ramp time adjustable from 0-100 hours
Isolation1500 VAC
Weight13 oz (369 g)
Front Panel RatingNEMA 4X (IP65)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
InputsInput: RTD
Input ImpedanceRTD current = 200 μA maximum
DisplayTwo 4-digit, 7 segment, 0.56" high LED
Resolution1 degree or 0.1 degree
Accuracy±0.25% of span, ±1 degree
Supply Voltage100-240 VAC nominal, ±10%, 50-400 Hz, single phase; 132-240 VDC nominal, ±10%
Power Consumption5 VA maximum
Operating Temperature14 to 131°F (-10 to 55°C)
Memory BackupNon-volatile memory. No batteries required
Control Output Ratings Relay: SPDT, 10 A @ 240 VAC resistive; Switched Voltage (non-isolated) 5 VDC @ 20 mA
Control ActionSelectable for reverse (usually heating) or direct (usually cooling)
RampOne ramp time adjustable from 0-100 hours
Isolation1500 VAC
Weight13 oz (369 g)
Front Panel RatingNEMA 4X (IP65)
