LSP-100-C 1 hp 72 gph Lawn Sprinkler Pump, 115/230V

Features:

Self priming
Cast iron casing and seal plate for durability and long life
Single-phase capacitor start
Standard 5/8" rotating mechanical seal, for a reliable seal against water leakage

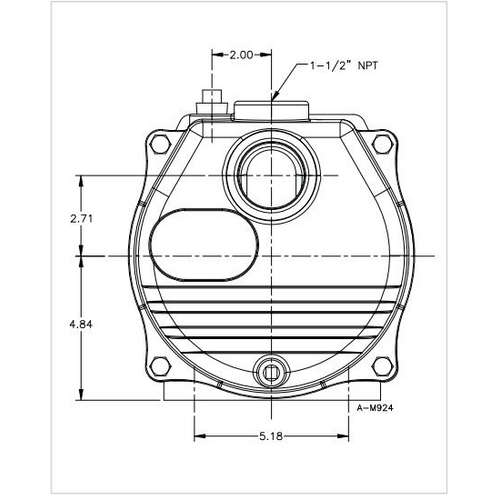

2" NPT (51 mm) suction, 1-1/2" NPT (38 mm) discharge
Priming plug to facilitate priming
Drain plug for easy drainage of pump
Fully serviceable with two-year warranty

Applications:

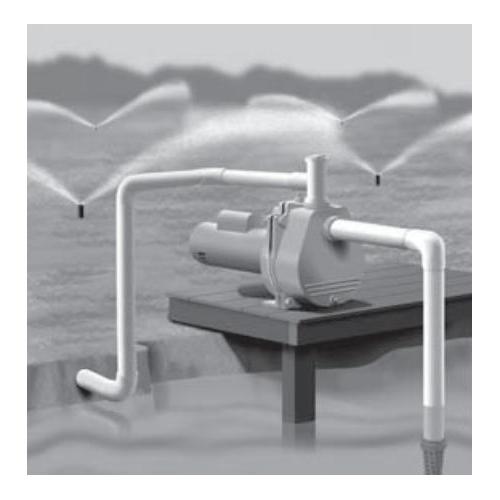

For both residential and commercial lawn and turf sprinkler systems, irrigation, gardens, and general water transfer

Performance Curve:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Model	LSP-100-C
HP	1
Max. Pressure in PSI (kg/cm²)	46 (3.3)
Pump Capacity GPM (LPM) Discharge Pressure in PSI @ 5' (1.5 m) Lift	10	72 (272.5)
	20	62 (234.7)
	30	46 (174.1)
	40	20 (75.7)

Model	LSP-100-C
HP	1
Max. Pressure in PSI (kg/cm²)	46 (3.3)
Pump Capacity GPM (LPM) Discharge Pressure in PSI @ 5' (1.5 m) Lift	10	72 (272.5)
	20	62 (234.7)
	30	46 (174.1)
	40	20 (75.7)

Note: Please read description carefully. Do not base your order on the picture presented.
