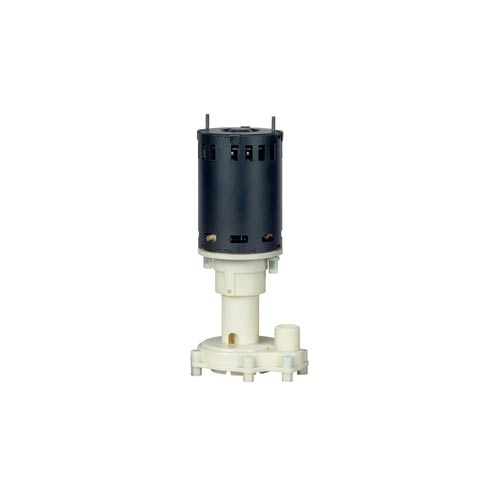

Little Giant, 545600, RIM-U Series 1/25 hp Universal Ice Machine Replacement Pump

Features:

Dual voltage (115/230 V, 50/60 Hz)
1/25 hp fan cooled motor
Upper and lower sealed ball bearings
Thermally protected
Moisture proof windings
Corrosion resistant stainless steel motor shaft
3 ft 4-wire leads
Pump easily disassembles for installing and servicing
Designed to re-use original ice machine OEM pump mounting bracket
Multiple impellers (included) to match most US-made ice machine OEM water pump specifications
Multiple discharge adapters (included) to match most US-made ice machine
OEM water pumps specifications, including 1/2", 5/8", 3/4" 1", plus a "Y" adapter for 5/8" tubing

Construction:

Applications:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Impeller Diameter	Discharge Adapter (I.D. Tubing Size)	Flow - Gallons/Liters per hour
		2 Ft / .6m
		GPH	LPH
1.75" / 44.5 mm 4 5 6	1/2"/12.7 mm	290	1097
	5/8"/15.8 mm	435	1646
	3/4"/19.1 mm	540	2044
	1"/24.5 mm	585	2214
1.83"/ 46.5 mm	1/2"/ 12.7 mm	360	1362
	5/8"/ 15.8 mm	550	2081
	3/4"/19.1 mm	700	2649
	1" /24.5 mm	810	3066
1.95"/ 49.5 mm	1/2"/12.7 mm	385	1457
	5/8"/15.8 mm	600	2271
	3/4"/19.1 mm	760	2876
	1" / 24.5 mm	825	3122
2.10"/ 53.3 mm	1/2"/12.7 mm	400	1514
	5/8"/15.8 mm	600	2271
	3/4"/19.1 mm	700	2649
	1" / 24.5 mm	760	2876

Impeller Diameter	Discharge Adapter (I.D. Tubing Size)	Flow - Gallons/Liters per hour
		2 Ft / .6m
		GPH	LPH
1.75" / 44.5 mm 4 5 6	1/2"/12.7 mm	290	1097
	5/8"/15.8 mm	435	1646
	3/4"/19.1 mm	540	2044
	1"/24.5 mm	585	2214
1.83"/ 46.5 mm	1/2"/ 12.7 mm	360	1362
	5/8"/ 15.8 mm	550	2081
	3/4"/19.1 mm	700	2649
	1" /24.5 mm	810	3066
1.95"/ 49.5 mm	1/2"/12.7 mm	385	1457
	5/8"/15.8 mm	600	2271
	3/4"/19.1 mm	760	2876
	1" / 24.5 mm	825	3122
2.10"/ 53.3 mm	1/2"/12.7 mm	400	1514
	5/8"/15.8 mm	600	2271
	3/4"/19.1 mm	700	2649
	1" / 24.5 mm	760	2876

Note: Please read description carefully. Do not base your order on the picture presented.
