Little Giant 513393 OS3-1L-9-13 1 hp Max. Oil Sensing Sump System with 6 ft. Cord, 115V - 60Hz

OS3-1L-9-13 1 hp Max. Oil Sensing Sump System with 6 ft. Cord & 9 - 13 Amps Overload Range, 115V - 60Hz

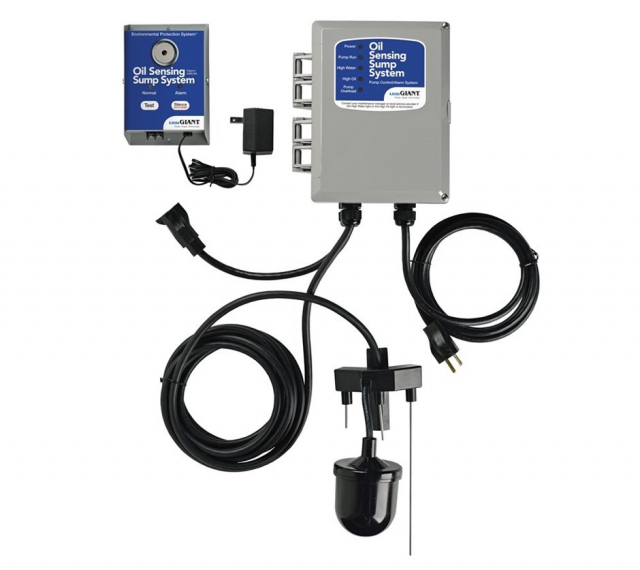

Includes:

• Sensor
• Control Panel
• Alarm Panel

Features:

• Multiple indicator lights; power, pump run, high-water; high oil, pump overload
• Single-piece sensor for easy installation
• ASME - A17 compliant
• Alarm panel can be connected to Oil Sensing Sump System’s remote panel which contains audio/visual alarming
• Both the main panel and remote alarm panel have auxiliary contacts for connection to a building’s automation system or SCADA system

Applications:

• Ideal for elevator sump pits, transformer vaults, and water-and-oil prone confined spaces in accordance with ASME - A17

Construction:

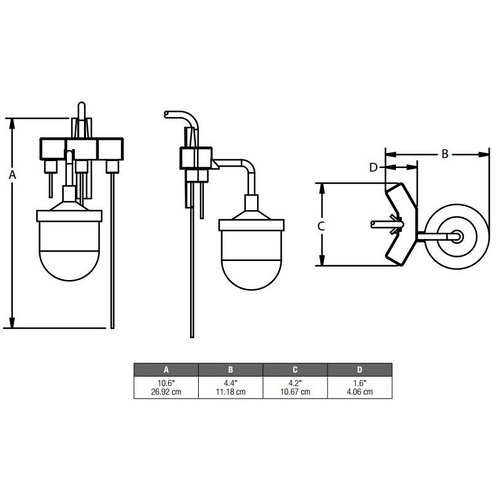

• Sensor
  • Housing - ABS
  • Probe - Stainless steel
  • Float - PVC
• Control Panel
  • Enclosure - Type 1
  • Power Cord - 6' SJT, 120 VAC
  • Receptacle - SJT, 120 VAC, 15 amp
• Alarm Panel
  • Enclosure - Type 1
  • Power Cord - Plug in transformer, 120 VAC
  • Backup Power - 9 VDC battery back-up
  • LED Indicators - Trouble, high level, high oil
  • Audible Alarm - 103 db buzzer, auto test/reset

Typical Installation:
