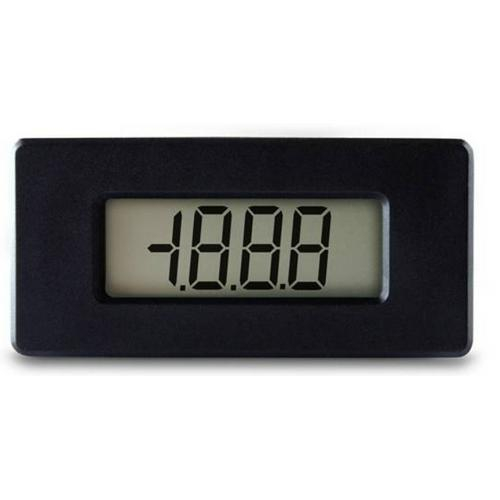

Lascar, V 1 (PK OF 10), V Series 200 mV LCD Voltmeter, 0.25" Digit Height
This exceptionally low cost panel meter features a 3-1/2 digit LCD with 6.3mm (0.25") digit height and is supplied. With 200mV full scale reading, auto-zero, auto-polarity and user selectable decimal points, this meter can be panel mounted using the snap-in bezel supplied. The V 1 (PK OF 10) is a popular part, normally stocked in high quantity and suitable for new designs.
To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module pins must not exceed 60Vdc. The user must ensure that the incorporation of the panel meter into the users equipment conforms to the relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and Laboratory Use)
Features:
- Low Cost
- 6.3 mm (0.25") Digit Height
- 200mV d.c. Full Scale Reading
- 1 mA (typ) at +9V d.c. Power Supply
- Auto-zero and Auto-polarity
- User Selectable Decimal Points
- Supplied with Mounting Bezel
Application:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
| Unit of Measure | Pack of 10 pcs |
