Includes:
- Panel meter
- Fixing kit.
- Quick start guide.
Features:
- 3.5" colour TFT screen;
- Use PanelPilot software, to setup and customize the display;
- Compatible with Windows 7, 8.1 and 10;
- Multiple voltmeter configurations included free;
- Programmable via the USB interface;
- Simple panel mounting solution;
- Wide operating voltage of 4V - 30V d.c.;
- Measures voltage from 0 - 40V d.c.;
- Digital Hold.
Application:
- Marine;
- Health and Chemical Sensing;
- Scientific;
- Test and Measurement;
- Energy;
- HVAC;
- Industrial.

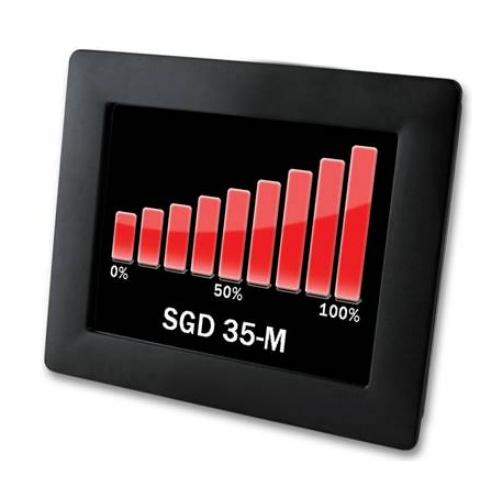

The SGD 35-M is a programmable panel meter featuring dual analogue inputs, alarm outputs and 3.5" TFT colour touchscreen display. Configured using the free PanelPilot M Software for Windows, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customize colours, text labels, units and input scaling before uploading to a display via USB.
The SGD 35-M is a PanelPilot Compatible graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface. Using the PanelPilot software (available for Windows 7, 8.1 and 10), users are able to choose from an ever-increasing number of voltmeter types (six at launch) which can then be customized to their needs. Colours, text labels, splash screen and input voltage scaling can all be customized by the user through the software and then uploaded to the SGD 35-M through the USB connection. Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display and 4 screw terminals to connect the inputs.
Display
- The display is a 3.5" TFT panel, with a resolution of 320 x 240 pixels and a 16-bit color depth. Any graphics that are uploaded to the meter are automatically converted to this specification. A resistive touchscreen is fitted, for use with supporting applications. Clean the screen with a damp, soft, lint free cloth.
Panel Mounting

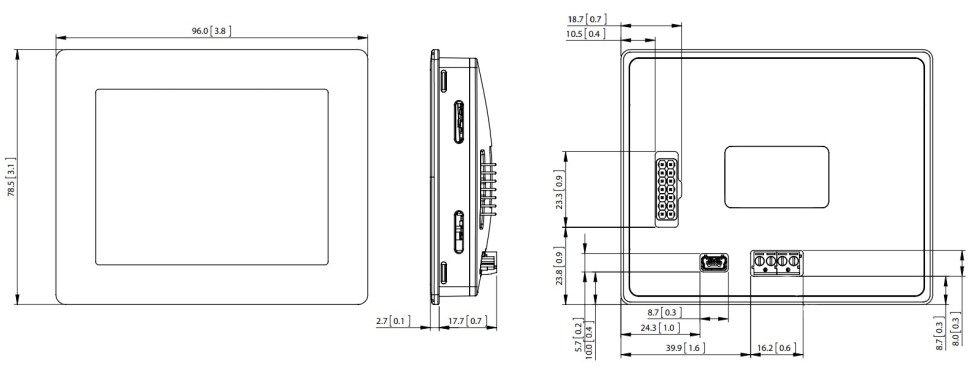

- The SGD 35-M can be fitted into panels 1 mm. - 3 mm. deep. A silicone seal is included to improve fitting on thin panels. Panel cut-out is 92 mm. x 74 mm.
Note:The display is NOT protected against moisture or dust.
Advanced Connector

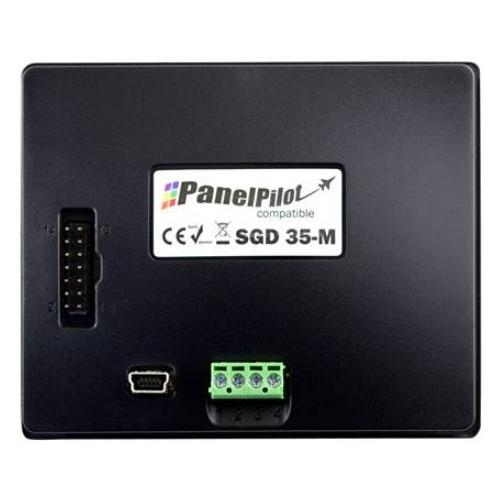

- The DIL IDC socket provides an alternative connection method to the screw-teminals (V+, 0V, IN1 and IN2 are duplicated). It also includes provision for future expansion using data buses (SPI and I2C) and alarm outputs. Some expansion options may require an additional interface board.
