Lascar EM32-1B Round Hole Fitting LCD Voltmeter

Features:

• 8 mm (0.31") Digit Height
• 200mV d.c. Full Scale Reading
• 3.5 to 6.5V or 7.5 to 14.0V Operation
• Auto-zero and Auto-polarity
• Selectable Decimal Points
• Requires 32.5mm (1.28") Diameter Cut-out
• IP67 / NEMA 4X Protected

Applications:

• Panel Mount Instrumentation
• Process & Control
• Automotive

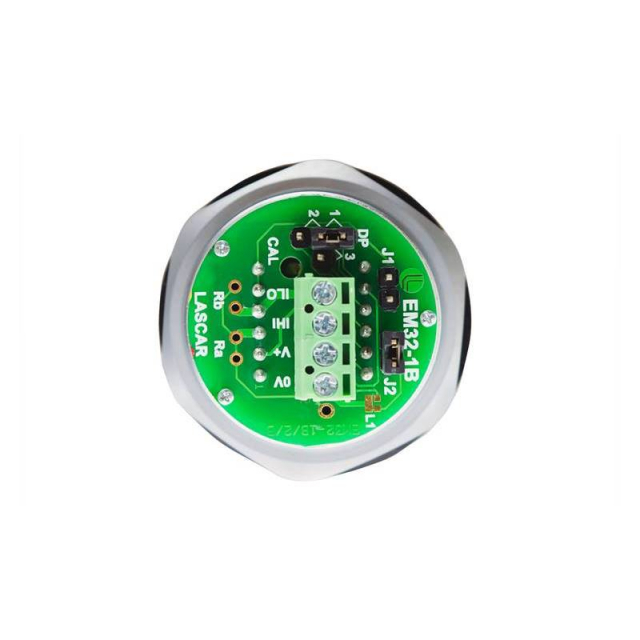

This panel meter features a 3-1/2 digit LCD with 8mm (0.31") digit height in a low profile housing. Fitted inside a threaded stud which allows easy mounting of the product through a 32.5mm (1.28") hole, this unique enclosure is ideal for quick mounting. A rubber seal provides waterproof protection to IP67 / NEMA 4X when fitted between the meter and mounting panel. Connection is via screw terminals. The EM32-1B is a low cost, popular part, normally stocked in high quantity.

For more information, please see Data Sheet
