Lascar, EL-GFX-DTP+, EasyLog High Accuracy Dual Channel Thermistor Data Logger
EL-GFX-DTP+ Includes Only:

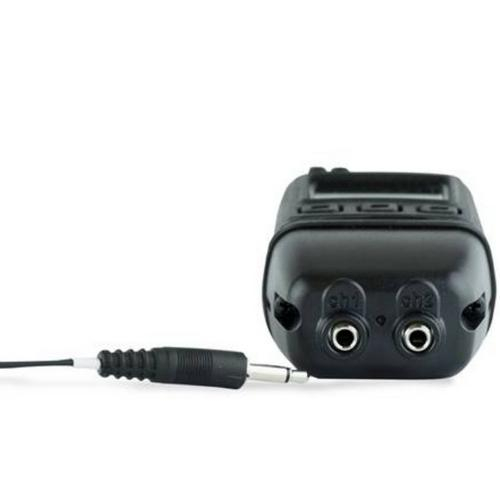

- Dual Channel Thermistor Data Logger
- 2 pc High accuracy thermistor probes
- 2 pc Batteries
- USB cable
- Magnetic mounting bracket
This USB data logger records over 250,000 temperature readings in one or more sessions for up to 4 months. It has user-programmable audible alarm thresholds with highly visible confidence/alarm LEDs. Inside the rugged case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. EL-WIN-USB enables quick configuration and data download via the USB port.
The data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC. Users can reset the maximum / minimum reading using the on-screen menu. This introduces an event marker into the data which can later be viewed in the graphing software (Mark Events option) and the data file after download
Features:
- Stores over 250,000 readings
- Logging rates between 2 seconds and 1 hour
- On screen menu and graphing to start, stop, review and restart the logger in the field
- Triggered logging mode to start recording data once a user defined level is met
- High contrast, greyscale, backlit, graphic LCD screen to denote status and alarm levels
- User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
- EasyLog software available as a free download
Application:
- Vaccine Storage
- Cold Chain in the Pharma Industry
- Building & Site Monitoring
