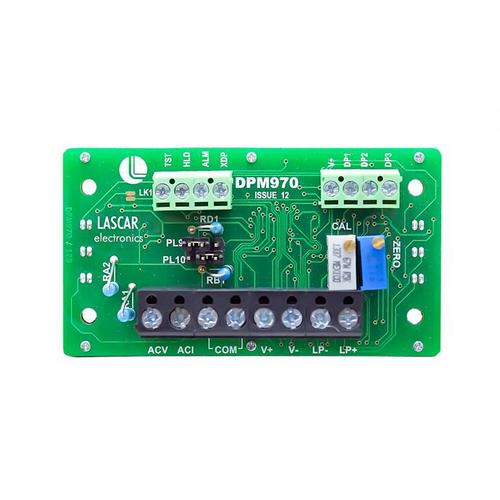

This large panel meter features a 3-1/2 digit LCD with 19mm (0.75") digit height and LED backlighting. With 500V a.c. full scale reading, digital hold, auto-zero and auto-polarity, and screw terminal connections, this meter can be fitted into a panel via the bezel, window and clips provided.

Features:

19mm (0.75") Digit Height
Screw Terminal Connections
Digital Hold
500V a.c. (2kV ) Full Scale Reading
Measures Voltage and Current
LED Backlighting

Application:

Precision Instrumentation Systems
Power Supply Monitoring
Hand held instruments
Panel-Mount Indication
Low Power Voltage Measurement

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

a - 1.0 mm (0.04")
b - 2.0 mm (0.08")
c - 6.5 mm (0.26")

d - 11.5 mm (0.45")
e - 12.5 mm (0.49")

Accuracy

0.5, 1.5 % (±2 count)

Resolution

1 Vrms

Sample Rate

3 samples/sec

Frequency Range

15 - 15k Hz

Operating Temperature Range

0 to 50 °C (32 to 122 °F)

Temperature Stability

200 ppm/°C

Supply Voltage

7.5 to 14 V d.c.

Supply Current

1.5 mA

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

a - 1.0 mm (0.04")
b - 2.0 mm (0.08")
c - 6.5 mm (0.26")

d - 11.5 mm (0.45")
e - 12.5 mm (0.49")

Accuracy

0.5, 1.5 % (±2 count)

Resolution

1 Vrms

Sample Rate

3 samples/sec

Frequency Range

15 - 15k Hz

Operating Temperature Range

0 to 50 °C (32 to 122 °F)

Temperature Stability

200 ppm/°C

Supply Voltage

7.5 to 14 V d.c.

Supply Current

1.5 mA
