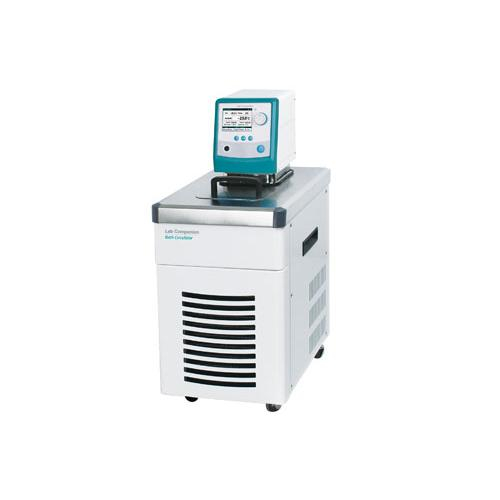

Lab Companion AAH57653U RW3-1025P 10L Refrigerated & Heating Circulator Bath, 120V / 60Hz

RW3-1025P 10L Refrigerated & Heating Circulator Bath, 120V / 60Hz

Intelligent program control

• 10 programs available for temperature ramp up and dwell control.
• 10 steps per a program and 99 hours 59 minutes per a step.
• Stored programs are easily linkable.
• Programs can be repeated up to 99 cycles.
• Pre-heating and heating time are settable before program starts.

Performance

• Temperature range from -25°C to 150°C.
• Microprocessor PID control.
• Three point temperature calibration / Automatic tuning / Automatic run.
• Suitable for both internal and external bath environments due to reduced turbulence by using five-speed adjustable pump and built-in cooling coil. (1 to 3 steps of the pump for internal circulation and 4 to 5 steps for external circulation)

Convenience

• Intuitive touch screen LCD controller with easy icons and logical menus.
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
• Digital input and output control function for interlocking external devices.
• RS-232 / USB interface for external control and data collection.
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
• Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
• Usage of CFC-free refrigerant (R-507, R-404A) and a double service valve for leakage prevention.
• Quick-release front grill for easy cleaning of the condenser.
• Built-in casters and side handles for easy transport and installation.

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
• Temperature warning Indicator simply shows inner reservoir’s temperature by three different colors.
• Complete safety protection system with warning alarms.
  • Low fluid level and dry-running, over-temperature, over-current.
• Keypad lock function prevents accidental changes during operation.
• Splash-proof keypad.
