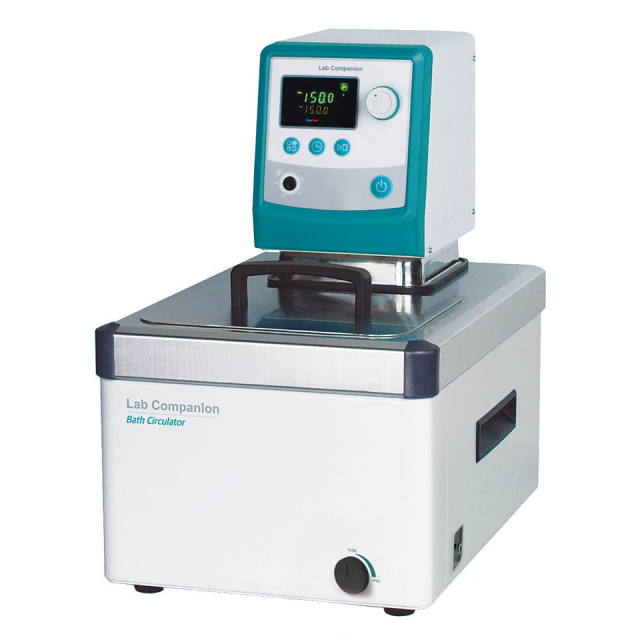

Lab Companion AAH52772U CW3-30P 30L Programmable Heating Bath, 120V

CW3-30P 30L Programmable Heating Bath, 120V

Intelligent program control

• 10 programs available for temperature ramp up and dwell control.
• 10 steps per a program and 99 hours 59 minutes per a step.
• Stored programs are easily linkable.
• Programs can be repeated up to 99 cycles.
• Pre-heating and heating time are settable before program starts.

Performance

• Temperature range from ambient +5 °C to 150 °C.
• Microprocessor PID control.
• Three point temperature calibration / Automatic tuning / Automatic run.
• Accurate, stable, and efficient temperature management by using a powerful variable-speed pump. (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
• Powerful pump pressure and flow rate throughout the whole temperature range.

Convenience

• Intuitive touch screen LCD controller with easy icons and logical menus.
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
• Digital input and output control function for interlocking external devices.
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
• RS-232 / USB interface for external control and data collection.
• Built-in casters and side handles for easy transport and installation.

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
• Temperature warning indicator simply shows inner reservoir’s temperature by three different colors.
• Complete safety protection system with warning alarms.
  • Low fluid level and dry-running, over-temperature, over-current.
• Keypad lock function prevents accidental changes during operation.
• Splash-proof keypad.
