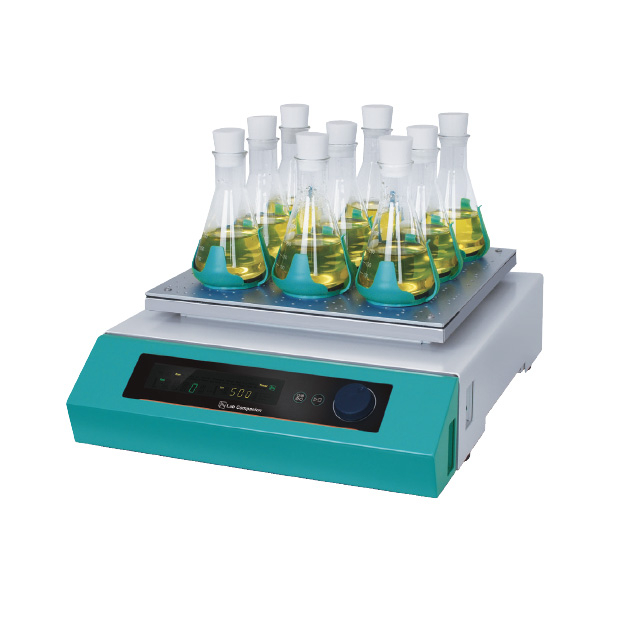

Lab Companion AAH3D1315K OS-4000 0.75" Amplitude Orbital Shaker, 230V

OS-4000 0.75" Amplitude Orbital Shaker, 230V

Performance

• Microprocessor PID control.
  • Intelligent speed controller enables reproducible results.
• Shaking speed calibration enables matching the displayed rpm to the reference point.
• Competitive high shaking speed up to 500 rpm.
• Orbital shaking motion in various diameter.
  • 19.1mm or 25.4mm for OS-4000
• Wide speed range even with heavy workload.
  • Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion. (for OS-4000)
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
  • Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
• Pleasant test environment by the smooth acceleration and deceleration control.
  • Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
• Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

• User friendly control panel.
  • Lab Companion’s unique VFD-bright, clear, easy to read.
  • Durable membrane touch switch and control knob.
• Easy-set digital timer. (1 min. to 999 hr. 59 min.)
• Repetitive task can be easily performed as the platform stops where it starts.
  • Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
• Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.
• Built-in RS-232 port and USB port for external control and data collection.
• Variety of accessories are available to meet application demands.

Safety

• Automatic run after power interruption.
• Shaking speed deviation alarm.
• Over-current protection, Stalled platform check. (stalled platform check is for OS-4000)
• CSA only for OS-4000.
