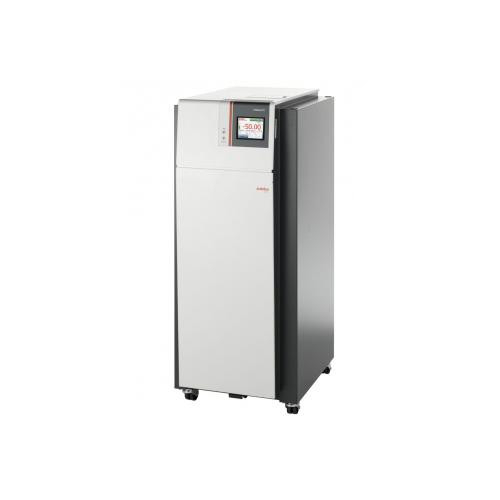

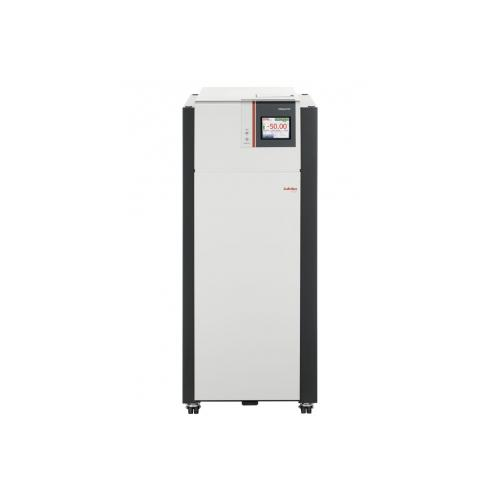

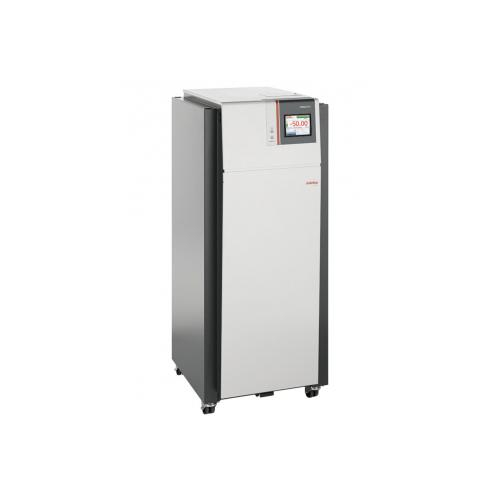

Buy Julabo 9421502.07, W50 Process Circulator, 400V/3Ph/50Hz

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions(W x L x H)	20.9 x 26.2 x 49.6 in.
Internal usable expansion volume	7.5 l
Minimal process volume	7.5 l
Active heat exchanger volume	3.5 l
Weight	463 lbs
Pump connections	M30x1.5 male
Pump connections	M30x1.5 male
Cooling Water Connection	G¾ in.
Working temperature range	-50.0 ... +250.0 °C
Temperature stability	+/-0.05 ... +/-0.1 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	1-stage Water
Cooling water pressure max.	87 ... 79.8 psi
Cooling water difference pressure	7.3 psi
Cooling water temperature max.	30 °C
1.0Cooling water consumption	8 ... 12 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Dimensions(W x L x H)	20.9 x 26.2 x 49.6 in.
Internal usable expansion volume	7.5 l
Minimal process volume	7.5 l
Active heat exchanger volume	3.5 l
Weight	463 lbs
Pump connections	M30x1.5 male
Pump connections	M30x1.5 male
Cooling Water Connection	G¾ in.
Working temperature range	-50.0 ... +250.0 °C
Temperature stability	+/-0.05 ... +/-0.1 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Cooling of compressor	1-stage Water
Cooling water pressure max.	87 ... 79.8 psi
Cooling water difference pressure	7.3 psi
Cooling water temperature max.	30 °C
1.0Cooling water consumption	8 ... 12 l/min
External pt100 sensor connection	integrated
2nd external Pt100 sensor connection	accessory
Integrated programmer	8x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	5.7" TFT Touchscreen
Temperature setting	Touchscreen

Note: Please read description carefully. Do not base your order on the picture presented.
