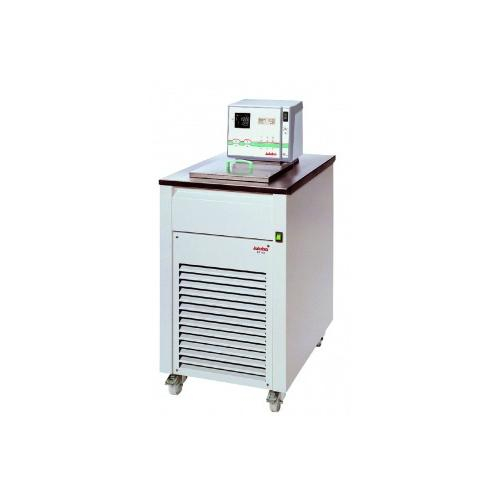

Buy Julabo 9352790.16, FP90-SL Heating Circulator 230V/60Hz, Square Lid

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions (W x L x H)	23.2 x 29.9 x 45.7 in.
Filling volume	22 l
Weight	443.1 lbs
Pump connections	M16x1 male
Pump connections	M16x1 male
Working temperature range	-90 ... +100 °C
Temperature stability	±0.05 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Classification according to DIN12876-1	Classification III (FL)
IP Code according to IEC 60529	IP 21
External pt100 sensor connection	integrated
Integrated programmer	6x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	VFD
Temperature setting	Keypad

Dimensions (W x L x H)	23.2 x 29.9 x 45.7 in.
Filling volume	22 l
Weight	443.1 lbs
Pump connections	M16x1 male
Pump connections	M16x1 male
Working temperature range	-90 ... +100 °C
Temperature stability	±0.05 °C
Setting the resolution of the temperature display	0.01 °C
Temperature display resolution	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Classification according to DIN12876-1	Classification III (FL)
IP Code according to IEC 60529	IP 21
External pt100 sensor connection	integrated
Integrated programmer	6x60 steps
Temperature control	ICC
Absolute temperature calibration	3 Point Calibration
Temperature display	VFD
Temperature setting	Keypad

Note: Please read description carefully. Do not base your order on the picture presented.
