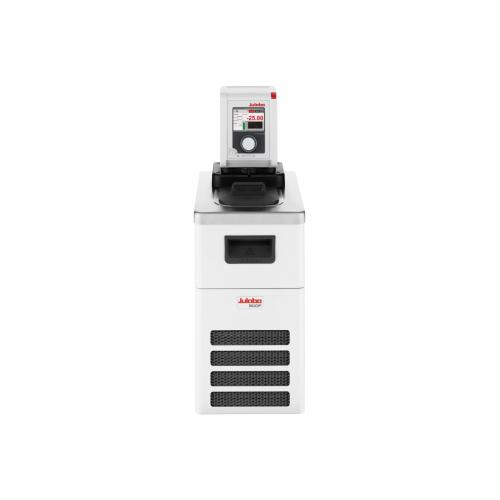

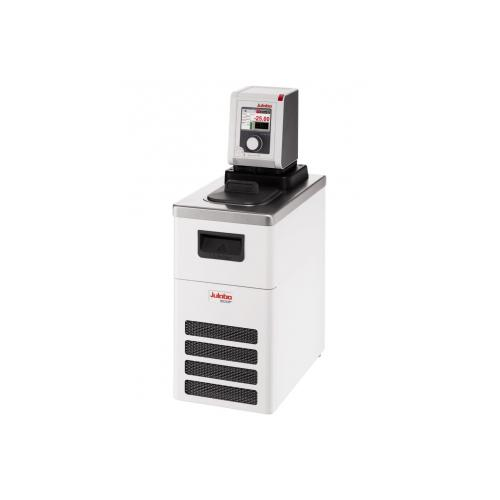

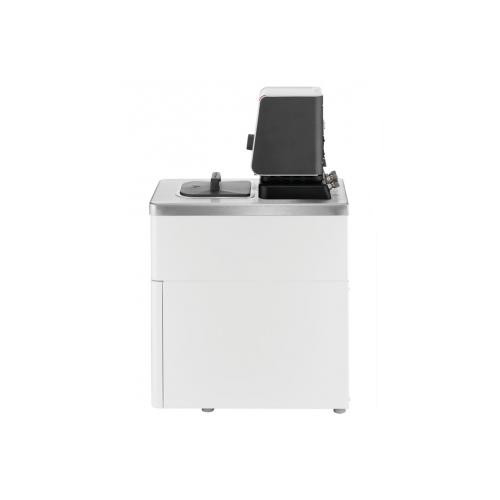

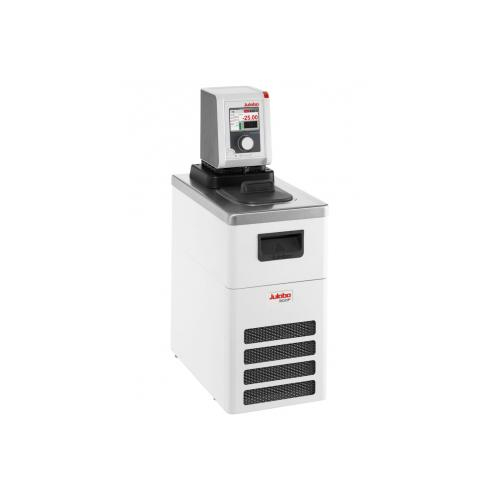

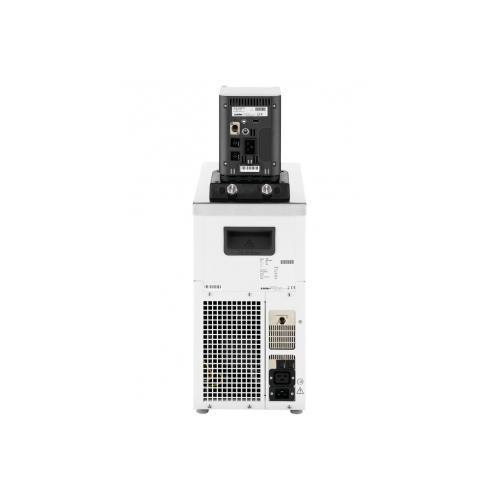

Julabo 9021703.04.A DD-300F Heating Circulator, Analog 230V

Voltage: Analog 230V/50Hz, UK Plug
  • Brand Julabo
  • Part # 9021703.04.A
  • Model # DD-300F
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Voltage:
Voltage: Analog 230V/50Hz, UK Plug

Julabo, 9021703.04.A, DD-300F Refrigerated, Heating Circulator Analog 230V/50Hz, UK Plug

Features with all optional accessories:

  • Optimized cooling coil design saves space in the bath tank
  • Powerful and infinitely adjustable pressure pump
  • Flow rate 27 l/min, pressure 0.7 bar
  • Easy switching between internal and external circulation
  • Large color TFT display, multilingual interface
  • Central rotary knob (controller) simplifies operation
  • Integrated programmer
  • Integrated external Pt100 connection
  • USB connection
  • RS232 interface or analog interfaces (optional)
  • Integrated drain makes emptying liquid easy and safe.
  • Removable ventilation grid
  • Space-saving cooling coil design yields more usable space in the bath tank
  • Powerful cooling machine
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Dimensions (W x L x H)24 x 42 x 66 cm
Filling volume3 ... 4 l
Weight27.7 kg
Pump connectionsM16x1 male
Barbed fittings inner diameter8/12 mm
Working temperature range-25 ... +200 °C
Temperature stability±0.01 °C
Setting the resolution of the temperature display0.01 °C
Ambient temperature+5.0 ... +40.0 °C
Bath tankStainless steel
Bath coverintegrated
Usable bath opening (W x L / D)13 x 15 / 15 cm
External pt100 sensor connectionintegrated
Integrated programmer8x60 steps
Temperature controlPID2
Absolute temperature calibration3 Point Calibration
Temperature display3.5" TFT Display
Temperature settingShaft Encoder
Electronic Timer hr:min99 ... 59
Product Details
Dimensions (W x L x H)24 x 42 x 66 cm
Filling volume3 ... 4 l
Weight27.7 kg
Pump connectionsM16x1 male
Barbed fittings inner diameter8/12 mm
Working temperature range-25 ... +200 °C
Temperature stability±0.01 °C
Setting the resolution of the temperature display0.01 °C
Ambient temperature+5.0 ... +40.0 °C
Bath tankStainless steel
Bath coverintegrated
Usable bath opening (W x L / D)13 x 15 / 15 cm
External pt100 sensor connectionintegrated
Integrated programmer8x60 steps
Temperature controlPID2
Absolute temperature calibration3 Point Calibration
Temperature display3.5" TFT Display
Temperature settingShaft Encoder
Electronic Timer hr:min99 ... 59
Note

Note: Please read description carefully. Do not base your order on the picture presented.
