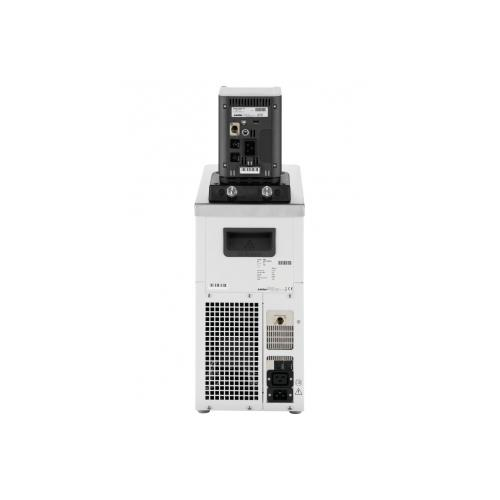

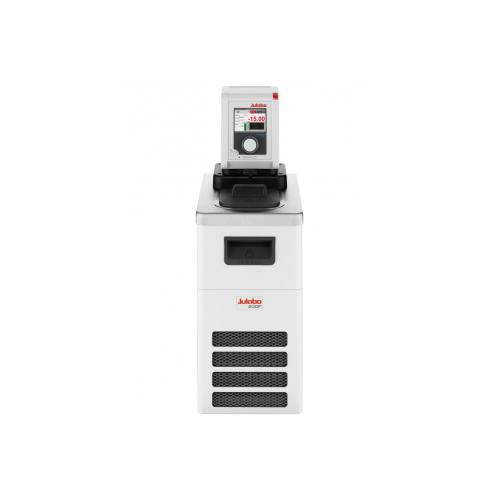

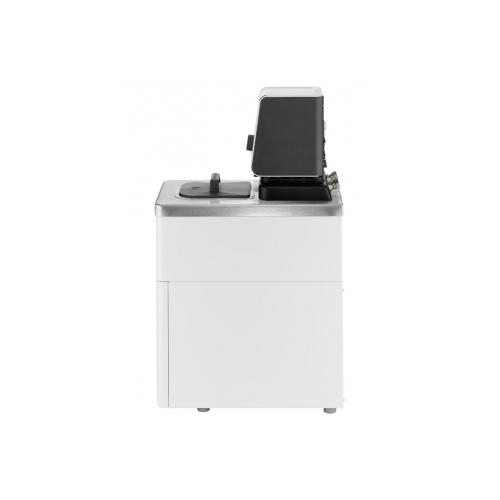

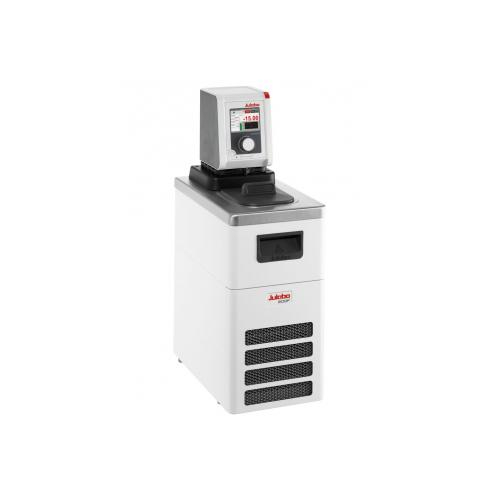

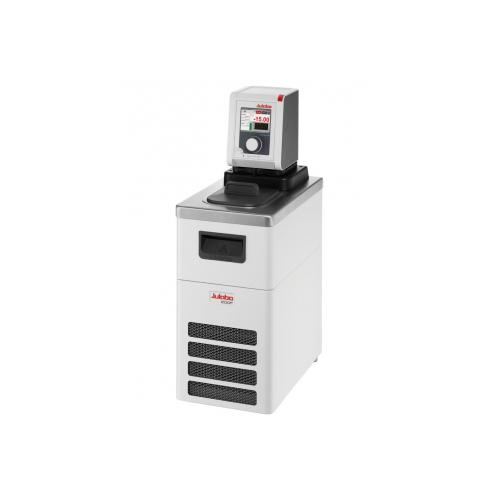

Julabo, 9021701.01.D, DD-200F Refrigerated/Heating Circulator Digital 100V/50-60Hz

Features with all optional accessories:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions (W x L x H)	9.1 x 15.4 x 25.6 in.
Filling volume	3 ... 4 l
Weight	56.7 lbs
Pump connections	M16x1 male
Pump connections	M16x1 male
Barbed fittings inner diameter	8/12 mm
Working temperature range	-20 ... +200 °C
Temperature stability	±0.01 °C
Setting the resolution of the temperature display	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Bath tank	Stainless steel
Bath cover	integrated
Usable bath opening (W x L / D)	5.1 x 5.9 / 5.9 in.
External pt100 sensor connection	integrated
Integrated programmer	8x60 steps
Temperature control	PID2
Absolute temperature calibration	3 Point Calibration
Temperature display	3.5" TFT Display
Temperature setting	Shaft Encoder
Electronic Timer hr:min	99 ... 59

Dimensions (W x L x H)	9.1 x 15.4 x 25.6 in.
Filling volume	3 ... 4 l
Weight	56.7 lbs
Pump connections	M16x1 male
Pump connections	M16x1 male
Barbed fittings inner diameter	8/12 mm
Working temperature range	-20 ... +200 °C
Temperature stability	±0.01 °C
Setting the resolution of the temperature display	0.01 °C
Ambient temperature	+5.0 ... +40.0 °C
Bath tank	Stainless steel
Bath cover	integrated
Usable bath opening (W x L / D)	5.1 x 5.9 / 5.9 in.
External pt100 sensor connection	integrated
Integrated programmer	8x60 steps
Temperature control	PID2
Absolute temperature calibration	3 Point Calibration
Temperature display	3.5" TFT Display
Temperature setting	Shaft Encoder
Electronic Timer hr:min	99 ... 59
