Jomar 500-098 T-SS-1000 Stainless Steel Mini Ball Valve

Size: 1/8" FIP x 1/8" MIP, Connection Type: FIP x MIP
  • Brand Jomar
  • Part # 500-098
  • Model # T-SS-1000
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 1/8" FIP x 1/8" MIP
Connection Type:
Connection Type: FIP x MIP

Jomar, 500-098, T-SS-1000 Stainless Steel Mini Ball Valve 1/8" FIP x 1/8" MIP

Stainless Steel Mini Ball Valve.

Features:

  • Full port.
  • Threaded connection.
  • Mini Valves.
  • Solid ball construction.
  • Corrosion resistant.
  • 29 in-Hg vacuum rating.
  • 100% leak tested.
  • Wetted surfaces contain less than .25% lead content.
  • Valve seat rating: 1000 WOG - 150 WSP.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews

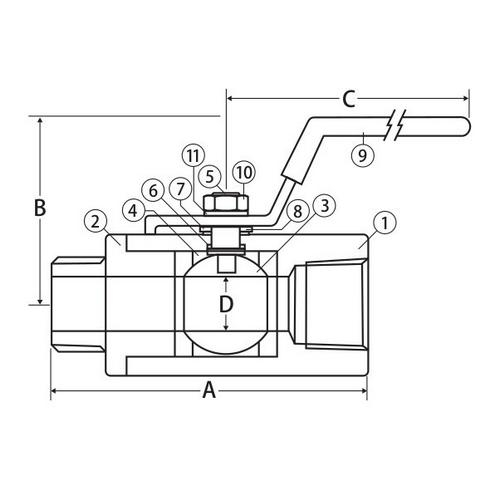

Dimensions
Size1/8" FIP x 1/8" MIP
A2.00
B1.22
C2.44
D0.20
Material Specifications
No.PartMaterials
1BodyCF8M Stainless Steel / 316 Stainless Steel
2Body Insert / End Connection316 Stainless Steel
3Ball316 Stainless Steel
4Seat (2)PTFE
5Stem316 Stainless Steel
6Stem SealPTFE
7PackingPTFE
8Packing Washer304 Stainless Steel
9Handle304 Stainless Steel
10Handle Nut304 Stainless Steel
11Lock Washer304 Stainless Steel
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Dimensions
Size1/8" FIP x 1/8" MIP
A2.00
B1.22
C2.44
D0.20
Material Specifications
No.PartMaterials
1BodyCF8M Stainless Steel / 316 Stainless Steel
2Body Insert / End Connection316 Stainless Steel
3Ball316 Stainless Steel
4Seat (2)PTFE
5Stem316 Stainless Steel
6Stem SealPTFE
7PackingPTFE
8Packing Washer304 Stainless Steel
9Handle304 Stainless Steel
10Handle Nut304 Stainless Steel
11Lock Washer304 Stainless Steel
Note

Note: Please read description carefully. Do not base your order on the picture presented.
