T-623G Lead Free Brass Boiler Drain 1/2"

Lead Free Brass Boiler Drain.

Features:

Compression connection.
Manufactured in ISO-9001 facility.
Wetted surfaces contain less than .25% lead content.
Pressure rating 125 WOG.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

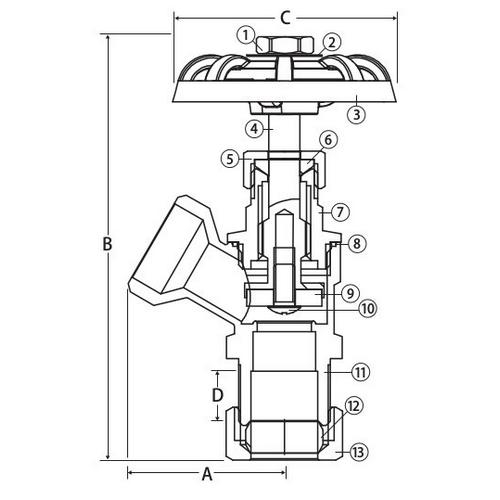

Dimensions
Size	1/2"
A	1.50
B (Open)	4.05
C	2.10
D	0.51

Material Specifications
No.	Part	Materials
1	Nut	304 Stainless Steel
2	Name Plate	Aluminum
3	Hand Wheel	Cast Iron
4	Stem	Lead Free Brass C46500
5	Compression Nut	Brass C37700
6	Gasket	PTFE
7	Bonnet	Lead Free Brass C46500
8	Gasket	PTFE
9	Seat Packing	EPDM
10	Screw	304 Stainless Steel
11	Body	Lead Free Brass C46500
12	Olive	Lead Free Brass H62
13	Nut	Brass C37700

Product Details

Dimensions
Size	1/2"
A	1.50
B (Open)	4.05
C	2.10
D	0.51

Material Specifications
No.	Part	Materials
1	Nut	304 Stainless Steel
2	Name Plate	Aluminum
3	Hand Wheel	Cast Iron
4	Stem	Lead Free Brass C46500
5	Compression Nut	Brass C37700
6	Gasket	PTFE
7	Bonnet	Lead Free Brass C46500
8	Gasket	PTFE
9	Seat Packing	EPDM
10	Screw	304 Stainless Steel
11	Body	Lead Free Brass C46500
12	Olive	Lead Free Brass H62
13	Nut	Brass C37700

Note: Please read description carefully. Do not base your order on the picture presented.
