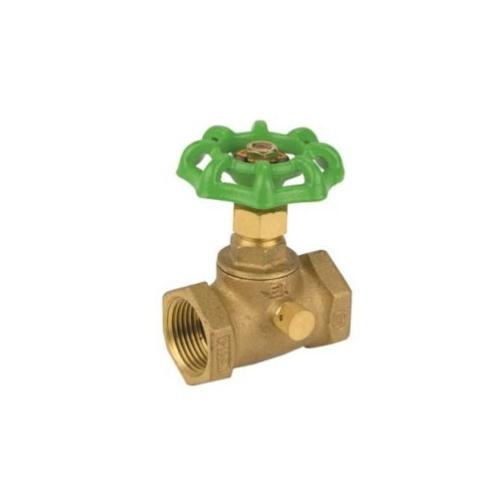

T-611G Lead Free Brass Stop & Waste Valve 1/2"

Lead Free Brass Stop & Waste Valve.

Features:

Threaded connection.
Manufactured in ISO-9001 facility.
Wetted surfaces contain less than.25% lead content.
Pressure rating 200 WOG.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Dimensions
Size	1/2"
A	2.13
B	2.64
C	2.13
D	0.91

Material Specifications
No.	Part	Materials
1	Handle Nut	Steel
2	Name Plate	Aluminum
3	Hand Wheel	Cast Iron
4	Stem	Brass
5	Packing Nut	Brass
6	Gland Packing	Buna-N
7	Bonnet	Cast Brass
8	Body	Cast Brass
9	Seat Packing	Buna-N
10	Seat Screw	Brass
11	Drain Cap	Brass
12	Drain Packing	Buna-N

Product Details

Dimensions
Size	1/2"
A	2.13
B	2.64
C	2.13
D	0.91

Material Specifications
No.	Part	Materials
1	Handle Nut	Steel
2	Name Plate	Aluminum
3	Hand Wheel	Cast Iron
4	Stem	Brass
5	Packing Nut	Brass
6	Gland Packing	Buna-N
7	Bonnet	Cast Brass
8	Body	Cast Brass
9	Seat Packing	Buna-N
10	Seat Screw	Brass
11	Drain Cap	Brass
12	Drain Packing	Buna-N

Note: Please read description carefully. Do not base your order on the picture presented.
