Options and Related Products

Size:: Size: 1/2"
Connection Type:: Connection Type: Solder connection

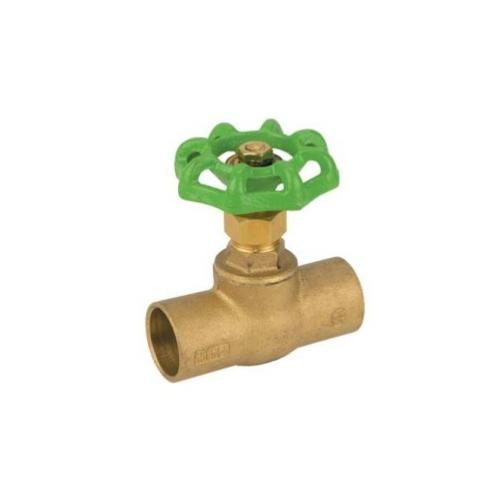

S-601G Lead Free Brass Stop Valve 1/2"

Lead Free Brass Stop Valve.

Features:

Solder connection.
Manufactured in ISO-9001 facility.
Wetted surfaces contain less than.25% lead content.
Pressure rating 200 WOG.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

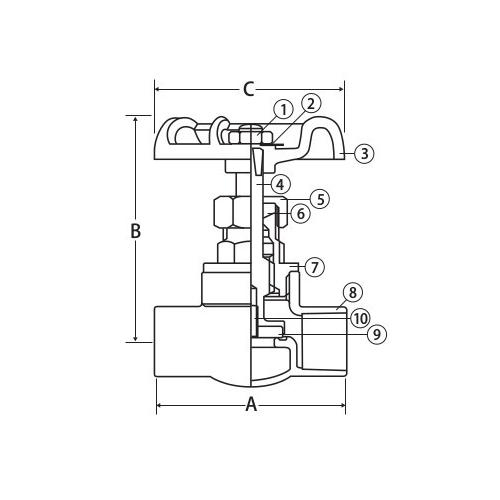

Dimensions
Size	1/2"
A	2.17
B	2.64
C	2.13

Material Specifications
No.	Part	Materials
1	Handle Nut	Steel
2	Name Plate	Aluminum
3	Hand Wheel	Cast Iron
4	Stem	Lead Free Brass
5	Packing Nut	Lead Free Brass
6	Gland Packing	Buna-N
7	Bonnet	Lead Free Cast Brass
8	Body	Lead Free Cast Brass
9	Seat Packing	Buna-N
10	Seat Screw	Lead Free Brass

Product Details

Dimensions
Size	1/2"
A	2.17
B	2.64
C	2.13

Material Specifications
No.	Part	Materials
1	Handle Nut	Steel
2	Name Plate	Aluminum
3	Hand Wheel	Cast Iron
4	Stem	Lead Free Brass
5	Packing Nut	Lead Free Brass
6	Gland Packing	Buna-N
7	Bonnet	Lead Free Cast Brass
8	Body	Lead Free Cast Brass
9	Seat Packing	Buna-N
10	Seat Screw	Lead Free Brass

Note: Please read description carefully. Do not base your order on the picture presented.
