T-100STN Brass Ball Valve 2"

Brass Ball Valve.

Features:

Full port.
Threaded connection.
With side tap.
Blow-out proof stem.
Triple sealing stem with 2 Viton® o-rings and Teflon® seal.
3/8 - 1 have 1/8 FIP side tap.
1-1/4 - 2 have 1/4 FIP side tap.
100% leak tested.
100% Made in Italy.
29 in-Hg vacuum rating.
Valve seat rating 500 WOG - 150 WSP.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

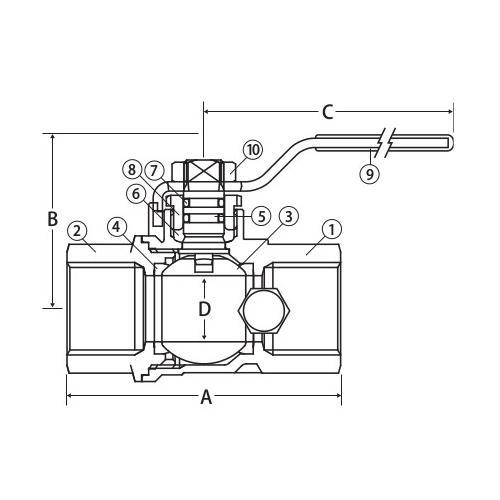

Dimensions
Size	2"
A	5.23
B	3.40
C	6.00
D	1.99
Cv	255.20

Material Specifications
No.	Part	Materials
1	Body	Brass - CW617N
2	End Connection	Brass - CW617N
3	Ball	Chrome Plated Brass - CW617N
4	Seat (2)	Hostaflon TFM 1600
5	Stem	Brass - CW614N
6	Packing	Hostaflon TFM 1600
7	Stem O-ring (2)	Viton
8	Packing Gland	Brass - CW614N
9	Handle	Steel - Geomet Plated
10	Handle Nut	Steel - Geomet Plated
11	Flat Washer	Buna-N
12	Cap	Brass - CW614N

Notes
