S-100-DUE Brass Ball Valve 1-1/4"

Brass Ball Valve.

Features:

Full port.
Double union end.
Solder connection.
Triple sealing stem with 2 Viton® o-rings and Teflon® seal.
Unions on inlet and outlet.
Corrosion resistant brass.
100% leak tested.
100% Made in Italy.
Valve seat rating: 400 WOG.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

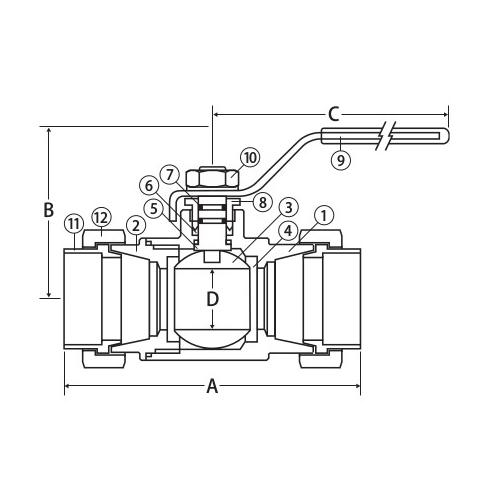

Dimensions
Size	1-1/4"
A	5.27
B	2.60
C	4.75
D	1.23
Cv	112.52

Material Specifications
No.	Part	Materials
1	Body	Brass - CW602N
2	End Connection	Brass - CW602N
3	Ball	Chrome Plated Brass - CW617N
4	Seat (2)	Virgin PTFE
5	Stem	Brass - CW602N
6	Packing	Virgin PTFE
7	Stem O-ring (2)	Viton
8	Packing Gland	Brass - CW602N
9	Handle	Steel - Geomet Plated
10	Handle Nut	Steel - Geomet Plated
11	Tail Piece	Brass - CW602N
12	Union Nut	Brass - CW602N

Product Details

Dimensions
Size	1-1/4"
A	5.27
B	2.60
C	4.75
D	1.23
Cv	112.52

Material Specifications
No.	Part	Materials
1	Body	Brass - CW602N
2	End Connection	Brass - CW602N
3	Ball	Chrome Plated Brass - CW617N
4	Seat (2)	Virgin PTFE
5	Stem	Brass - CW602N
6	Packing	Virgin PTFE
7	Stem O-ring (2)	Viton
8	Packing Gland	Brass - CW602N
9	Handle	Steel - Geomet Plated
10	Handle Nut	Steel - Geomet Plated
11	Tail Piece	Brass - CW602N
12	Union Nut	Brass - CW602N

Note: Please read description carefully. Do not base your order on the picture presented.
