Options and Related Products

Size:: Size: 1"
Handle Type:: Handle Type: Lever Handle

S-412G Lead Free Brass Ball Valve 1"

Lead Free Brass Ball Valve.

Features:

Standard Port.
Solder x Crimp Pex Connection.
Gland follower and single o-ring stem design.
Blow-out proof stem.
100% leak tested.
Wetted surfaces contain less than .25% lead content.
Body rated to 600 WOG.
Crimp connection rated to 100 WOG up to 180 F.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

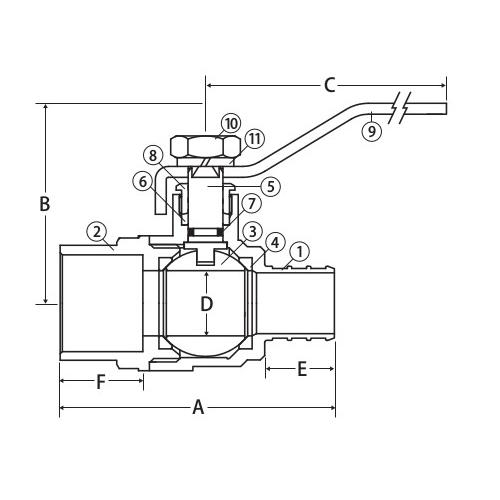

Technical Details

Dimensions
Size	1"
A	3.05
B	1.95
C	4.29
D	0.71
E	0.80
F	0.86

Material Specifications
No.	Part	Materials
1	Body	Lead Free Brass - C46400
2	End Connection	Lead Free Brass - C46400
3	Ball	304 Stainless Steel
4	Seat (2)	PTFE
5	Stem	304 Stainless Steel
6	Packing	PTFE
7	Stem O-ring	Buna-N
8	Packing Gland	Lead Free Brass - C46400
9	Handle	Steel - Chrome Plated
10	Handle Nut	Steel - Chrome Plated
11	Lock Washer	Steel - Chrome Plated

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions
Size	1"
A	3.05
B	1.95
C	4.29
D	0.71
E	0.80
F	0.86

Material Specifications
No.	Part	Materials
1	Body	Lead Free Brass - C46400
2	End Connection	Lead Free Brass - C46400
3	Ball	304 Stainless Steel
4	Seat (2)	PTFE
5	Stem	304 Stainless Steel
6	Packing	PTFE
7	Stem O-ring	Buna-N
8	Packing Gland	Lead Free Brass - C46400
9	Handle	Steel - Chrome Plated
10	Handle Nut	Steel - Chrome Plated
11	Lock Washer	Steel - Chrome Plated

Note: Please read description carefully. Do not base your order on the picture presented.
