Package Includes:: Package Includes: GoTo EQ Mount, LiteRoc Tripod, Hard Case

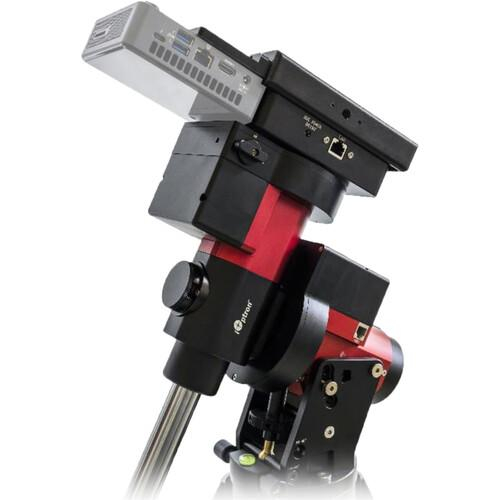

iOptron, 7603AN, GEM45-NUC GoTo EQ Mount with LiteRoc Tripod and Hard Case

7603AN Includes Only:

iOptron GEM45-NUC GoTo EQ Mount with LiteRoc Tripod & Hard Case
iOptron GEM45 Hard Case
iOptron LiteRoc Tripod for CEM40/GEM45 EQ Mounts
Go2Nova 8407+ Controller
Counterweight Shaft
11 lb Counterweight
110-240 VAC Power Adapter
USB Cable
RS-232 to RJ9 Serial Cable
2 x 6P6C RJ11 to RJ11 Controller Cables

Features with all optional accessories:

Motorized Computer-Controlled EQ Mount
Set Up for Optional Intel NUC Computer
Very Good <±7 Arcsec Tracking Accuracy
Go2Nova 8407+ Computer Controller
Permanent Periodic Error Correction
Built-In iPolar Electronic Polar Finder
Precise 32-Channel GPS Unit
Universal Saddle for Vixen & Losmandy
45-Pound Payload Capacity
1.75" Stainless Steel Tripod with Tray

Taking design cues from their venerable CEM line of EQ mounts, iOptron's GEM45-NUC Equatorial GoTo Mount strips out a lot of the bulk but retains the exceptional functionality to produce a highly portable and competent platform for astronomical observation and photography. This upgraded version of the mount has a redesigned interface panel that will accept an optional Intel NUC minicomputer that will eliminate cables that would normally run to your laptop and help to avoid connection errors to control interfaces.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Subject to the use of all the optional accessories.
Mount	German Equatorial Mount
Max payload	45 lbs (20 kg), exclude counterweight
Mount weight	18 lbs (8.2 kg)
Payload/Mount weight	2.2
Structure Material	All metal, CNC machined
Exterior Finish	Anodized red/black
Latitude adjustment range	14° ~ 68°
Azimuth adjustment range	± 6°
Tracking accuracy (PE)	<±7 arcsec
PEC	PPEC
Period	400 sec
Worm diameter	Φ17mm, Brass
Right Ascension worm wheel	Φ110mm, 216 teeth, zero backlash
Declination worm wheel	Φ110mm, 216 teeth, zero backlash
Right Ascension axis shaft	Φ45mm steel
Declination axis shaft	Φ45mm steel
Right Ascension bearings	Φ68mm
Declination bearings	Φ68mm
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11lbs (5kg) X1
Motor	Precision stepper motor, 1.8°/128X micro-step
Motor resolution	0.08 arcsec (200 PPS)
Transmission	Synchronous belt
Hand Controller	Go2Nova® 8407+, 8 line 21 character LCD
Star Database	212,000+, star identification
Power	DC 12V, 5A (5.5mm/2.5mm plug)
AC adapter	100V ~ 240V (included)
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power-down memory	Yes
Polar scope	Internal iPolar™ electronic polar scope
Meridian treatment	Stop (0-20° pass), flip
Zero position	Automatic zero search
Dovetail saddle	6" Losmandy-D & Vixe dual saddle
Max slew speed	4.5°/sec (1080X)
Guiding port	ST-4
Communication port	USB
GPS	Yes
WiFi	External (optional)
Guiding scope/camera	Optional external iGuider 1
Cable Management	DC12V (3A),DC (5A), GUIDE,USB For NUC: DC 19V, LAN and USB
Tripod	LiteRoc 1.75" Stainless Steel(~8kg), optional Tri-pier
Hard case	Included
Operation temperature	-10°C ~ 40°C

Product Details

Subject to the use of all the optional accessories.
Mount	German Equatorial Mount
Max payload	45 lbs (20 kg), exclude counterweight
Mount weight	18 lbs (8.2 kg)
Payload/Mount weight	2.2
Structure Material	All metal, CNC machined
Exterior Finish	Anodized red/black
Latitude adjustment range	14° ~ 68°
Azimuth adjustment range	± 6°
Tracking accuracy (PE)	<±7 arcsec
PEC	PPEC
Period	400 sec
Worm diameter	Φ17mm, Brass
Right Ascension worm wheel	Φ110mm, 216 teeth, zero backlash
Declination worm wheel	Φ110mm, 216 teeth, zero backlash
Right Ascension axis shaft	Φ45mm steel
Declination axis shaft	Φ45mm steel
Right Ascension bearings	Φ68mm
Declination bearings	Φ68mm
Counterweight shaft	Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight	11lbs (5kg) X1
Motor	Precision stepper motor, 1.8°/128X micro-step
Motor resolution	0.08 arcsec (200 PPS)
Transmission	Synchronous belt
Hand Controller	Go2Nova® 8407+, 8 line 21 character LCD
Star Database	212,000+, star identification
Power	DC 12V, 5A (5.5mm/2.5mm plug)
AC adapter	100V ~ 240V (included)
Power consumption	0.6A(Tracking), 0.9A(GOTO)
Power-down memory	Yes
Polar scope	Internal iPolar™ electronic polar scope
Meridian treatment	Stop (0-20° pass), flip
Zero position	Automatic zero search
Dovetail saddle	6" Losmandy-D & Vixe dual saddle
Max slew speed	4.5°/sec (1080X)
Guiding port	ST-4
Communication port	USB
GPS	Yes
WiFi	External (optional)
Guiding scope/camera	Optional external iGuider 1
Cable Management	DC12V (3A),DC (5A), GUIDE,USB For NUC: DC 19V, LAN and USB
Tripod	LiteRoc 1.75" Stainless Steel(~8kg), optional Tri-pier
Hard case	Included
Operation temperature	-10°C ~ 40°C
