Buy Industrial Test Systems 486696-PLUS, eXact Chlorine Plus Photometer

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Replacement

This product is discontinued, no longer available. Replacement part numbers:

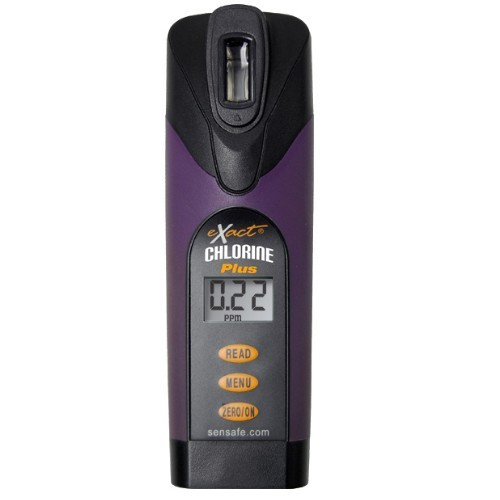

486696-PLUS, eXact Chlorine Plus Photometer

The new eXact® Chlorine Plus photometer is the perfect meter for all your water quality testing needs. It tests important environmental parameters with lab-quality accuracy at minimal cost. It features a narrow band wavelength filter for improved accuracy; long-life LEDs and a built-in cell for ultra-performance. No visual color matching required means the eXact® Chlorine Plus takes the guesswork out of water testing

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Measurement Method

Photometric

Light Source

Light Emitting Diode (LED)

Wavelength

525 nm

Transmission Range

100 - 0.00 %T

Photometric Precision

+/- 0.1/0.01 %T

Display:

3-digit customized liquid crystal display with annunciators

CELL Pathlength

20mm

Cell Chamber

Custom-molded, proprietary, PET plastic IXVHGLQWRFKDPEHUQRQUHPRYDEOH Sample

Sample Required

4 ml (0.13 oz)

Operating Temperature Range

0 - 50°C (32° - 122°F)

Power Supply

(4) AAA Alakline batteries (NOT INCLUDED)

Battery Life

>2000 tests with alkaline batteries

Electromagnetic Compliance

Emitted Inference - EN 61326
Immunity ro Interference - EN 61326

Waterproof Rating

Exceeds IP67

Weight

140 g (5 oz)

Dimensions

2 x 1,4 x 6.375"
5 (w) x 3.5 (D) x 16.5 (H) cm.

Automatic Range Selection

Menu

Tests for¹

Range

Resolution

BEST²Accuracy (%)

CL1

Free Chlorine (DPD-1) & Total Chlorine (DPD-3)

0.05-11.0 ppm

0.01 (0-5.99 ppm)

±3%

0.1 (6.0- 11.0 ppm)

bR2

Bromine

0.05-13.0 ppm

0.01 (0-5.99 ppm)

±3%

0.1 (6.0- 14.0 ppm)

Ozone

0.01-1.5 ppm

0.01

±8%

Cd4

Chlorine Dioxide

0.04-7.0 ppm

0.01 (0-5 ppm)

±8%

0.1 (5.1- 7.0 ppm)

PA5

Peracetic Acid

2.4-300 ppm

±5%

HP6

Hydrogen Peroxide

0.04-100 ppm

0.01 (0.04-9.9 ppm)

±8%

1 (10-100 ppm)

PH7

6.4-8.4 pH

0.1

±0.2 pH

HR8

Total Chlorine High

1.2-250 ppm

±8%

Perfomance verified with various water samples with optimal water temperatures at 10-40 degC/ 50-104 degF
Value provided represnts best possible accuracy under laboratory conditions, but may vary throught the detection range.

Product Details

Measurement Method

Photometric

Light Source

Light Emitting Diode (LED)

Wavelength

525 nm

Transmission Range

100 - 0.00 %T

Photometric Precision

+/- 0.1/0.01 %T

Display:

3-digit customized liquid crystal display with annunciators

CELL Pathlength

20mm

Cell Chamber

Custom-molded, proprietary, PET plastic IXVHGLQWRFKDPEHUQRQUHPRYDEOH Sample

Sample Required

4 ml (0.13 oz)

Operating Temperature Range

0 - 50°C (32° - 122°F)

Power Supply

(4) AAA Alakline batteries (NOT INCLUDED)

Battery Life

>2000 tests with alkaline batteries

Electromagnetic Compliance

Emitted Inference - EN 61326
Immunity ro Interference - EN 61326

Waterproof Rating

Exceeds IP67

Weight

140 g (5 oz)

Dimensions

2 x 1,4 x 6.375"
5 (w) x 3.5 (D) x 16.5 (H) cm.

Automatic Range Selection

Menu

Tests for¹

Range

Resolution

BEST²Accuracy (%)

CL1

Free Chlorine (DPD-1) & Total Chlorine (DPD-3)

0.05-11.0 ppm

0.01 (0-5.99 ppm)

±3%

0.1 (6.0- 11.0 ppm)

bR2

Bromine

0.05-13.0 ppm

0.01 (0-5.99 ppm)

±3%

0.1 (6.0- 14.0 ppm)

Ozone

0.01-1.5 ppm

0.01

±8%

Cd4

Chlorine Dioxide

0.04-7.0 ppm

0.01 (0-5 ppm)

±8%

0.1 (5.1- 7.0 ppm)

PA5

Peracetic Acid

2.4-300 ppm

±5%

HP6

Hydrogen Peroxide

0.04-100 ppm

0.01 (0.04-9.9 ppm)

±8%

1 (10-100 ppm)

PH7

6.4-8.4 pH

0.1

±0.2 pH

HR8

Total Chlorine High

1.2-250 ppm

±8%

Perfomance verified with various water samples with optimal water temperatures at 10-40 degC/ 50-104 degF
Value provided represnts best possible accuracy under laboratory conditions, but may vary throught the detection range.

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
