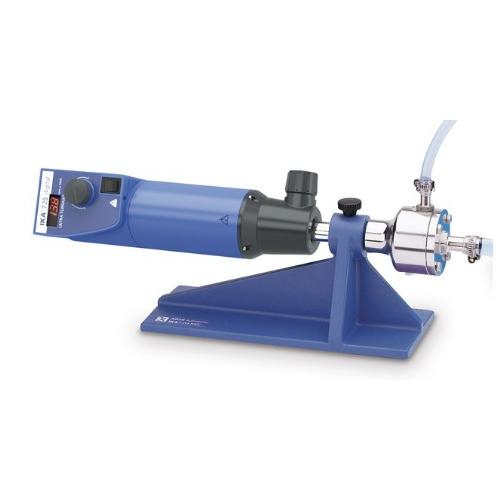

Buy Ika 0008014401, UTL 25 Digital Inline Dispenser for Circulation

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

For circulation or flow-through processings in the laboratory.

Features:

Simple, compact and sturdy modular design
Sterilizable, autoclave-compatible
Table-top or stand-supported device, low space requirement
Easy disassembly
Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
For air-free, sterile, and inline suspension, emulsifying and deagglomeration
For vacuum or pressurized operation (up to 6 bar)
If the DK 25.11 is used, air induction is also prevented in batch operation
Not self-priming
A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed
Not suitable for continuous operation or cyclical continuous operation

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Motor rating input	500 W
Motor rating output	300 W
Pump rate	11.6 l/min
Speed range	6500 - 24000 rpm
Speed control	stepless
Speed display	scale
Noise without element	73 dB(A)
Extension arm diameter	13 mm
Extension arm length	175 mm
Chamber volume	26 ml
Attainable vacuum	1 mbar
Pressure max.	6 bar
Process type	inline
Dimensions (W x H x D)	450 x 120 x 100 mm
Weight	3.8 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
Voltage	115 V
Frequency	50/60 Hz
Power input	500 W

Motor rating input	500 W
Motor rating output	300 W
Pump rate	11.6 l/min
Speed range	6500 - 24000 rpm
Speed control	stepless
Speed display	scale
Noise without element	73 dB(A)
Extension arm diameter	13 mm
Extension arm length	175 mm
Chamber volume	26 ml
Attainable vacuum	1 mbar
Pressure max.	6 bar
Process type	inline
Dimensions (W x H x D)	450 x 120 x 100 mm
Weight	3.8 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
Voltage	115 V
Frequency	50/60 Hz
Power input	500 W
