Buy Ika 0004234501, T 65 Ultra-Turrax Digital 1000 - 9500 rpm 50 L Dispersing Instrument with LED & Speed Control

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Motor Rating Input:: Motor Rating Input: 2600W

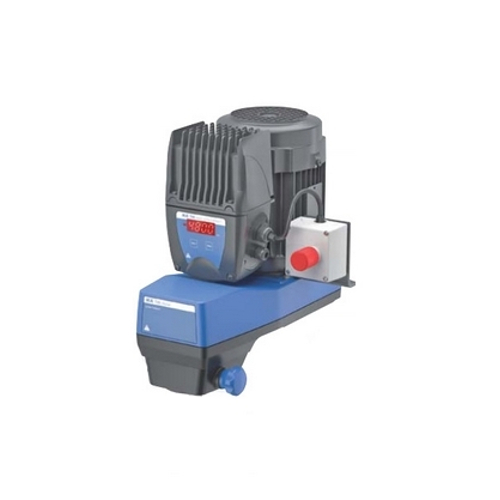

Ika, 0004234501, T 65 Ultra-Turrax Digital 1000 - 9500 rpm 50 L Dispersing Instrument with LED & Speed Control without Dispersing Element

Includes:

Disperser T 65 digital Ultra-Turrax®
Three part tool set for dispersion tools series S 65 (Rotor wrench, Hook wrench, Shaft wrench, Cable gland for the stand limit switch cable, Hexagon L-wrench DIN 911
Operating instruction

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 - 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

Features:

Digital speed display
Electronic speed control
Electronic overload protection
Cables and plugs not included in the delivery.
Plug-in connectors facilitate exchange of dispersing elements
Stainless steel dispersing elements for use under vacuum and pressure
Error code display

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Reviews

Motor rating input	2600 W
Motor rating output	2200 W
Volume range min. (H2O)	2 l
Volume range max. (H2O)	50 l
Viscosity max.	5000 mPas
Speed range	1000 - 9500 rpm
Reversible direction of rotation	no
Speed deviation	3 %
Speed control	stepless
Speed display	7 segment LED
Noise without element	75 dB(A)
Process type	batch
Dimensions (W x H x D)	300 x 390 x 400 mm
Weight	30 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Power input	2600 W

Product Details

Motor rating input	2600 W
Motor rating output	2200 W
Volume range min. (H2O)	2 l
Volume range max. (H2O)	50 l
Viscosity max.	5000 mPas
Speed range	1000 - 9500 rpm
Reversible direction of rotation	no
Speed deviation	3 %
Speed control	stepless
Speed display	7 segment LED
Noise without element	75 dB(A)
Process type	batch
Dimensions (W x H x D)	300 x 390 x 400 mm
Weight	30 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
Power input	2600 W
