Product Details

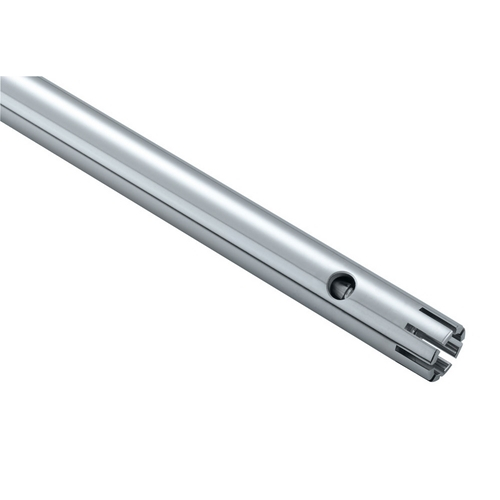

S 25 NK - 19 G Dispersing Element, 0.025-1.5 L Volume Range (H2O)

The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is necessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.

Specification

Volume range min. (H2O)	0.025 l
Volume range max. (H2O)	1.5 l
Stator diameter	19 mm
Rotor diameter	12.7 mm
Gap between rotor and stator	0.3 mm
Circumferential speed max.	15.9 m/s
Immersion depth min.	40 mm
Immersion depth max.	165 mm
Shaft length	194 mm
Material in contact with medium	PTFE, AISI 316L
pH min.	2
pH max.	13
Suitable for solvents	yes
Suitable for abrasive substances	yes
Working temperature max.	120 °C
Sterilization methods	wet chemical
Ultimate fineness, suspensions min.	10 µm
Ultimate fineness, suspensions max.	50 µm
Ultimate fineness, emulsions min.	1 µm
Ultimate fineness, emulsions max.	10 µm
